Sakaguchi Electric Heaters CO.

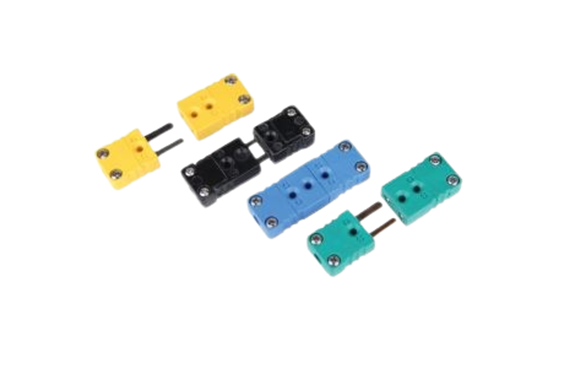

Sakaguchi Watlow Thermocouple Miniature Connectors
Manufacturer: Sakaguchi Electric Heaters CO., LTD.
Model: Miniature
Features
Specifications
| Thermocouple type | Heat-resistant temperature (°C) | ASTM E230/ANSI Color Codes | Pin Dimension (mm) | Product Code | Product Code (WATLOW Model) | ||
|---|---|---|---|---|---|---|---|
| Plug | Jack | Plug | Jack | ||||

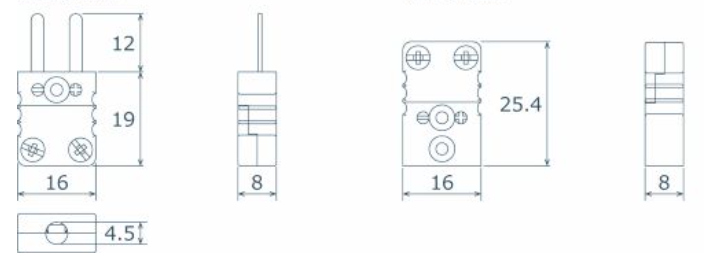

| K(CA) | 200 | ■Yellow | Spacing: 7.9 +:φ2.3 -:φ3.2 | MCM-K | MCF-K | MCM-K-NAT | MCF-K-NAT |
| J(IC) | 200 | ■Black | MCM-J | MCF-J | MCM-J-NAT | MCF-J-NAT | |
| T(CC) | 200 | ■ Cyan | MCM-T | MCF-T | MCM-T-NAT | MCF-T-NAT | |
| R(Pt-13% Rh/Pt) | 200 | ■Green | MCM-R | MCF-R | MCM-R-NAT | MCF-R-NAT | |
