SAKAMOTO ELECTRIC MFG. CO.

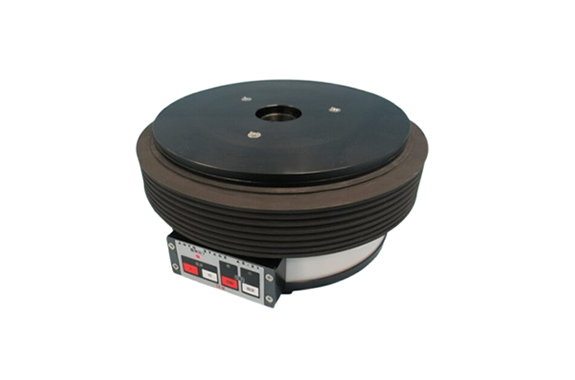

Sakamoto AS-22 Automatic Precision Stage
Manufacturer: Sakamoto Electric Mfg. Co., Ltd.
Model: AS-22
Features
- High-precision automatic leveling after just turning on the power
- Sound and LED alerts you when leveling is complete
- Automatic leveling within ±6.5 degrees
- Larger diameter Φ200 than conventional models
- Target load capacity is 12.5 kg
Specifications
| Repeatability accuracy | 0±0.01 deg |
| Automatic positioning range | 約±6.5 deg |
| Vertical detection method | Z-18 2-axis horizontal sensor (patented in Japan, U.S., and European countries) |
| Braking method | Servo control method by microcomputer |
| Average leveling speed | 0.2 deg/sec |
| Power supply | Rechargeable lithium-ion battery (continuous use time: approx. 4 hours) |
| Alarm mechanism | Out of control range: beep beep beep beep repetition |
| Battery level 6.0V or less: Bipipiping repetition | |
| Battery remaining 5.6V or less: Automatically turns off the power | |
| Abnormality warning sound of the unit: Continuous beep (mechanical trouble or abnormal condition) | |
| Operating temperature range | -5 ～＋40℃ |
| Drip-proof | – |
| Control Load Limit | 12.0 kg (target) |
| Weight | 4.0 kg |
| Main unit dimensions | φ200ｍｍ×100ｍｍＨ |
| Bottom fixation: ♀ φ35mm P2 screw | |
| Fixing of the surface: ♀ φ30mm P1.5 screw | |
| Accessories | Rechargeable lithium-ion battery No. NB-5S 1 pc |
| Dedicated battery charger No. NA-5V (AC100-240V) 1 pc. | |
| Bottom fixation: ♀ φ35mm P2 screw, 1 pc. | |
| Fixing of the solid surface: 1 ♀ φ30mm P1.5 screw | |
| Dedicated clamping hardware: 1 pc | |
| Instruction manual 1 pc. |
