SAKAMOTO ELECTRIC MFG. CO.

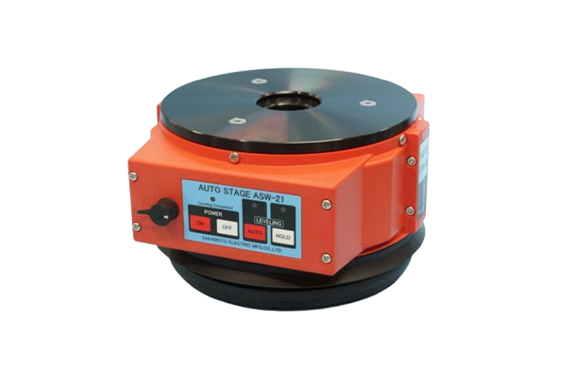

Sakamoto ASW-21 Automatic Precision Leveling Table Auto Stage
Manufacturer: Sakamoto Electric Mfg. Co., Ltd.
Model: ASW-21
Features
- High-precision automatic leveling after just turning on the power
- An audible sound and LED alerts the user when leveling is complete.

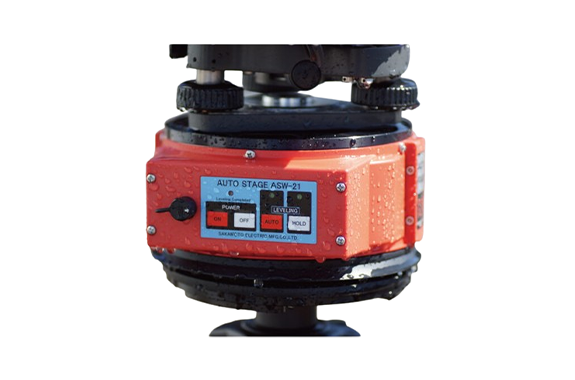

- Drip-proof (IPX4) for use in harsh environments
- Dual power supply system with lithium-ion battery and AC adapter
- Optional external command to start leveling can be issued.
Specifications
| Repeat accuracy | 0±0.005 deg |
| Measurement range | Approx. ±4 deg |
| Detection of vertical | Z-18 2-axis level senor（Japan, USA, EU patented） |
| Braking type | Servo motor control by microcomputer |
| Avg. time to horizontal level | 0.2 deg/sec |
| Power | Rechargeable lithium ion battery（Operation time 4 hours） |
| AC adapter（AC100 V） | |
| Alarm | Out of control range：Repeat beep sound |
| Battery voltage 6.0 V or lower：Repeat twice beep sound | |
| Battery voltage 5.6 V or lower：Auto power OFF | |
| Beep sound：Beep (Mechanic trouble or abnormal condition ) | |
| Operation temperature | -5 to＋40℃ |
| Drip-proof | IPX4 |
| Load limit | 7.0 kg |
| Weight | 1.7 kg |
| Dimension | φ150 ｍｍ × 105 ｍｍＨ |
| Bottom fixing screw ：♀ φ35 ｍｍ P2 | |
| Top fixing screw：♀ φ30 ｍｍ P1.5：♀ φ30 ｍｍ P1.5 | |
| Accessories | Rechargeable lithium ion battery No. NB-5S ×1 |
| Charger No. NA-5V（AC100 to 240V） ×1 | |
| Case（220 mm × 379 mm × 190 ｍｍ） ×1 | |
| AC adapter（OUT：DC12V/1A）Remote | |
| Connector adapter cable | |
| Bottom fixing screw ：♀ φ35 ｍｍ P2 ×1 | |
| Top fixing screw：♀ φ30 ｍｍ P1.5 ×1 |
