SAKAMOTO ELECTRIC MFG. CO.
Sakamoto Horizontal Adjustment System
Manufacturer: Sakamoto Electric Mfg. Co., Ltd.
Features

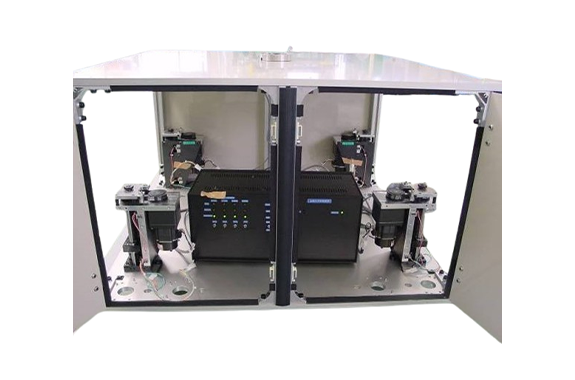

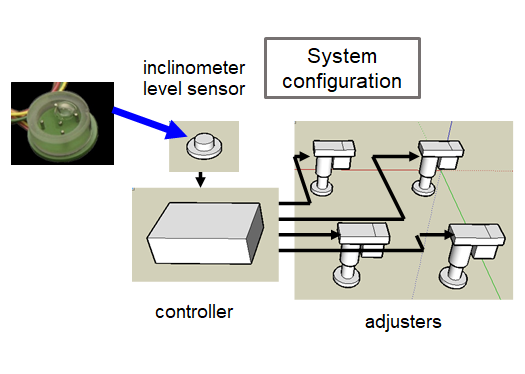

- The system maintains the table level by applying the level sensor of a digital spirit level and driving a level-control actuator.
- Significant reduction of leveling man-hours by shifting from manual leveling to an automatic leveling system that can be easily performed by anyone
- Automatic leveling with 4 or more vertical multiple axes
- Automatic horizontal adjustment even when four or more vertical multiple axes are arranged in a polygonal shape
- Vertical movement of the horizontal plane while maintaining the level due to the connection of automatic leveling tables
- High degree of freedom in rearrangement of automatic leveling tables and readjustment of the horizontal level due to layout changes, etc., enabling a significant reduction in man-hours.
Specifications
| Sensor | Linear Angle | Xdirection ±0.3deg / Ydirection ±0.3deg |
| Measurement resolution | 0.0002 degrees | |
| Zero Repeatability | ±0.001deg or less | |
| Reaction speed | 50ms or less | |
| Operating temperature | -10℃～＋50℃ | |
| Main unit | Microcomputer | 32bit microcontroller |
| A/D section | 14 bit | |
| Measurement range | ±0.3 degrees | |
| A/D resolution | 0.000025 degrees | |
| Display range | 0.0001 degrees | |
| Pass Range Setting Range | 0.0001 degrees | |
| Range switching | 0.01 / 0.001 / 0.0001 | |
| over display | 0.3deg or more | |
| Functions | Measurement time range | 0 to 99 minutes (units are seconds) |
| Number of sensor connections | 1ch | |
| Display section | 4.3 inch color LCD touch panel/480 x 272 dots | |
| Power source | Measurement time range | “Dedicated AC adapter DC6V” 4 AA batteries (1.5V) (AA nickel metal hydride rechargeable batteries are also acceptable) |
| Dimensions | Monitor part | 280g / height 145mm x width 96mm x visibility 35mm |
| Sensor part | Φ50×19mm / 70g (SUS base) | |
| cable | Dedicated cable white 2m |
