Sakamoto Level for Roll Horizontal Adjustment

Manufacturer: Sakamoto Electric Mfg. Co., Ltd.

Features

Used for leveling horizontal rolls
Applicable to rolls with diameters from φ40 to φ200

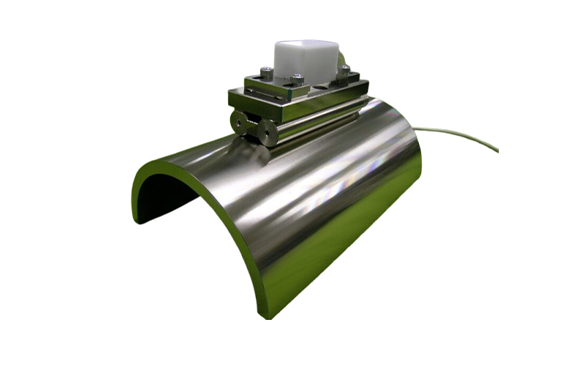

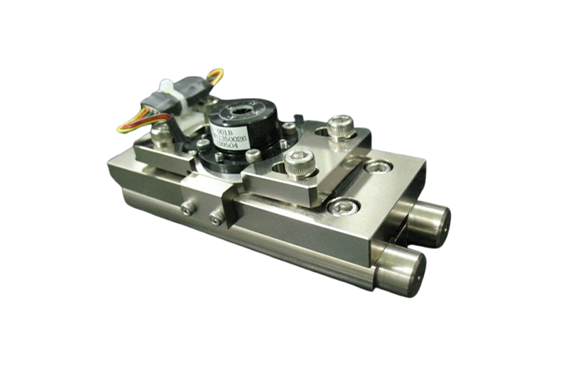

Special jig (*) enables stable measurement of horizontal roll angle
※ See supplementary explanation.
Angle measurement range: 2 axis type: ±0.3 degrees, 1 axis 1.0-degree Accuracy(repeatability)
2 axis;±0.001 degree(range ±0.3deg)
1 axis;±0.005 degree(range ±1.0deg)

Sensor part	Linear angle output	X direction ±0.3° (deg) Y direction ±0.3° (deg)
	Measurement resolution	0.0002° (deg) max.
	Zero point repeatability	Less than ±0.001° (deg)
	Response speed	50ms max.
	Operating temperature	-10°C to +50°C
Main unit	Microcomputer	8bit microcontroller
	A/D Section	14bit
	Measurement range	±0.3° (deg)
	A/D resolution	0.000025° (deg)
	Display range	0.0001° (deg)
	Pass Range Setting Range	0.0001° (deg)
	Range switching	0.01 / 0.001 / 0.0001
	OVER display	0.3deg or more
Function	Measuring time range	0 to 99 minutes (unit: seconds)
	Number of sensor connections	1CH
	Display section	Graphic LCD 160✕160 dots with LED backlight
Power source		Dedicated AC adapter DC 6V 2A 4 x 1.5V AA batteries (or rechargeable AA NiMH batteries)
Dimensions	Monitor	H180✕W100✕D45 (mm)
	Sensor section	Φ 50 X 23.5 mm (100 g)
	Cable	Standard 2m

Sensor	Linear angle output	±1.0° (deg)
	Measurement resolution	0.0002° (deg) max.
	Zero point repeatability	Less than ±0.005° (deg)
	Response speed	50ms max.
	Operating temperature	-10°C to +50°C
Main unit	Control method	16bit microcontroller (H8/300)
	A/D section	14bit
	Measuring range	±1.0° (deg)
	A/D resolution	0.000025° (deg)
	Display range	0.0001° (deg)
	Range switching	0.01 / 0.001 / 0.0001
	Set value memory	EEPROM
	Power Failure Guarantee	Supercapacitor & EEPROM
	Data memory	100 data / 1 file MAX 10 files
	External I/F	USB 1.0
Function	Number of sensor connections	1 axis 1 CH
	Display	160✕160 dot LCD
	Operating temperature/humidity	0°C to 50°C / 20% to 80% non-condensing
	Storage temperature/humidity	-20°C to 80°C / 20% to 80% non-condensing
Power source		Dedicated AC adapter DC6V 2A 4 AA dry cell batteries (1.5 V) (AA NiMH rechargeable batteries also acceptable)”
Dimensions	Monitor section	H140✕W205✕D50 (mm)
