Sakamoto Millimeter Wave Radar 2-Axis Separate Type Inclinometer, 1-Axis Digital Level

Manufacturer: Sakamoto Electric Mfg. Co., Ltd.

Features

The inclinometer is equipped with a 2-axis acceleration sensor, and the level is a compact 1-axis horizontal sensor.

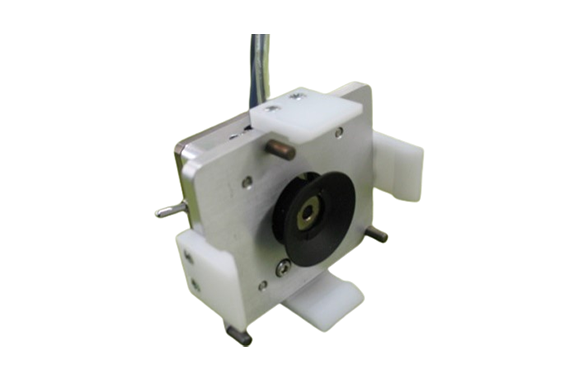

Strongly adheres to vertical measurement surface with suction pad for precise measurement.
Pressure sensor monitors the state of correct suction setting.
Vibration-proof and lightweight design
Inclinometer accuracy 0.1deg. or less, level accuracy 0.01deg. or less

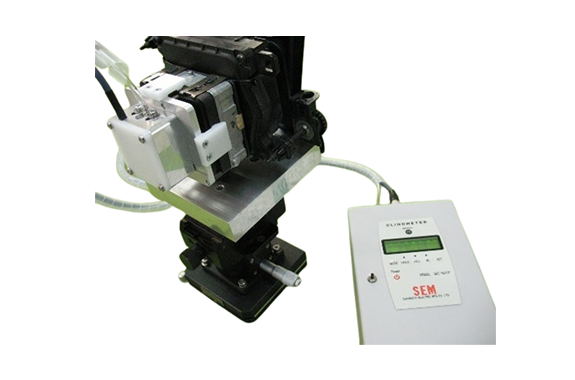

Adhesion Wired Inclinometer

Measuring range	±45.0 degrees
Accuracy (repeat)	±0.1 degrees (±10.0 degrees)
Resolution	0.01 degrees
Response Speed	Approx. 200ms or less
Power source	Ni-MH rechargeable battery 12V 2200mAh
Operating temperature/humidity range	10 to 40°C (theoretical), 25 to 85%RH (no condensation)
Storage temperature/humidity range	-10 to 75°C (theoretical), 20 to 90%RH (no condensation)
Sensor mass, dimensions	Adhesive pad type 40g
Monitor section weight, dimensions	W138✕H69✕D190 (mm), 1.2 kg (including batteries)

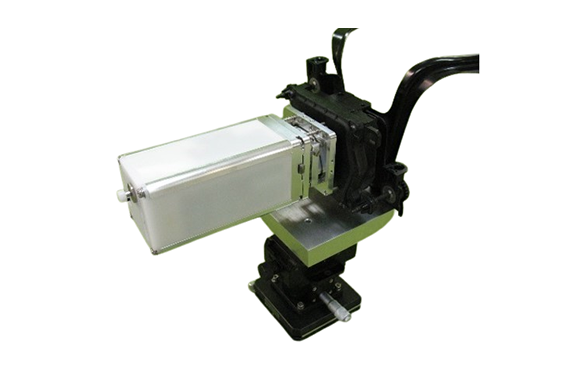

Adhesive Type Wireless Level

【Transmitter Side】

Transmission method	Data transmission by weak radio wave Unidirectional
Frequency	310.24 to 314.74 MHz (10 CH variable)
Data rate	1200 bps
Transmission output	0.75 mW (*1)
Reaching distance	6m in a clear line of sight (*2)
Control Method	One-chip microcomputer
Angle measurement range	±1.0 degree
Angle resolution	0.0000184 degrees
Measurement range over display	OVER indicator blinks when ±0.3 degree or more
Battery Life	CR2 +3V
Battery life	–
Shape	70Φ✕H45
Weight	– (varies depending on the jig base)

※1. The electric field strength at a distance of 3m is set at 500uV/m in accordance with the Radio Law.

※2. Reaching distance varies greatly depending on the environment and conditions at that time.

【Receiver side】

Dimensions	W96✕H180✕D45
Weight
Power supply	Dedicated adapter (6V/2A) or 4 AA batteries (1.5V),USB power supply (5V)
Radio	Weak radio frequency 310.24 to 314.74 MHz (10 CH variable)
Communication speed	1200 bps
Antenna	1/4λ antenna
Display	Graphic LCD 160✕160 dots
PC I/F	USB 1ch
Measuring range	±1.0 degree
Operating Temperature	0 to 40°C (32 to 104°F)
Operating Humidity	25% to 80%RH (no condensation)
Battery Life	4 hours continuous operation (backlight off)
