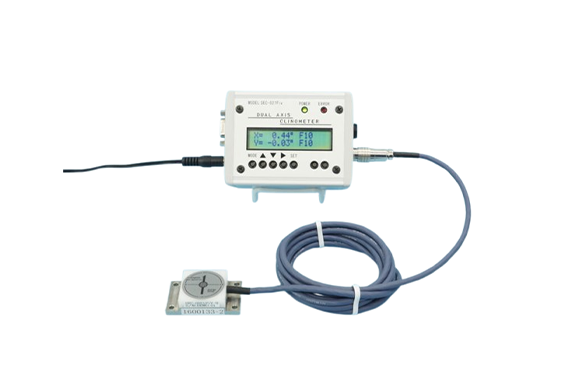

Sakamoto SEC-021FivⅡ-H Inclination Angle Monitoring System
Manufacturer: Sakamoto Electric Mfg. Co., Ltd.
Model: SEC-021FivⅡ-H
Features

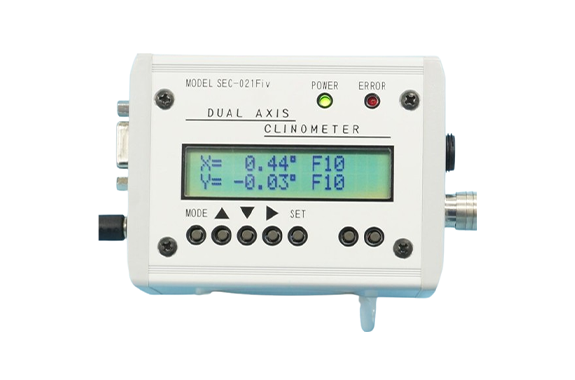

- Separate type with a sensor and a display
- 1-axis or 2-axes which can choose
- HOLD and OFFSET functions available
- power supply DC12V
- Angle measurement in vibration atmosphere possible (filtering function)
- 2 external outputs: digital and analog
Specifications
| Measurement range | ±45 deg (※Optional specifications ±60 deg) |
| Repeat accuracy | ±0.1 deg（±10 deg） |
| ±0.15 deg（＋10.0～＋45.0 deg、－10.0～－45.0 deg） | |
| Resolution | 0.01 deg |
| Response speed | about 200 ms or less |
| Power supply | DC12V |
| Operating temperature/humidity range | 10～40℃（Theoretical value）、20～85％RH（no condensation） |
| Strage temperature/humidity range | －10～75℃（Theoretical value）、20～90％RH（no condensation） |
| External output | Digital output (RS232C) Analog output (0-10V DC corresponds to -45° to +45° angle, 5V to 0°) |

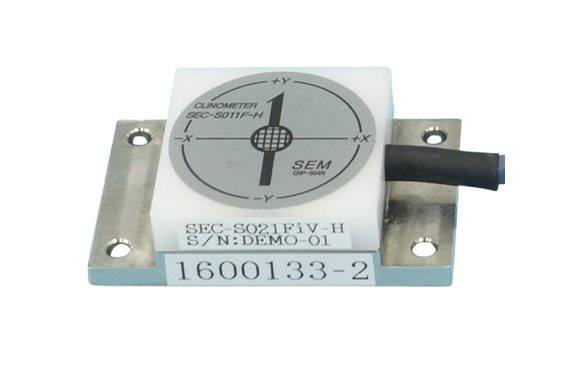

| Weight monitor sensor | 236 g 100 g (Horizontal type) |
| Dimensions monitor sensor | W100×D50×H75 mm W52×D32×H14.5 mm, Cable length 2m |
