SAKAMOTO ELECTRIC MFG. CO.
Sakamoto SEC-S011F-H Separate Type Inclinometer (Horizontal Measurement Type)
Manufacturer: Sakamoto Electric Mfg. Co., Ltd.
Model: SEC-S011F-H
Features

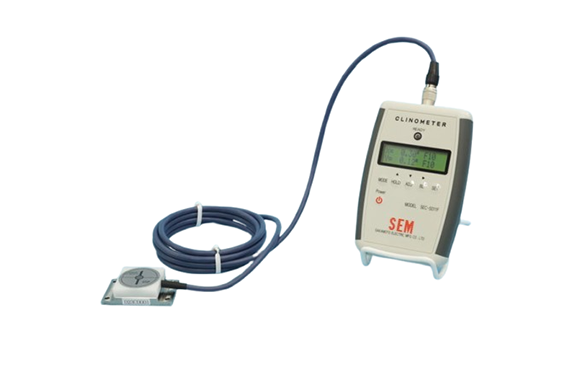

- Separate type with a sensor and a display

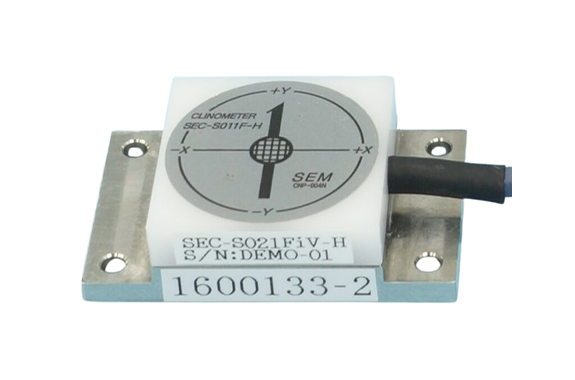

- Ultra-compact sensor measuring W52 x D32 x H14.5 mm

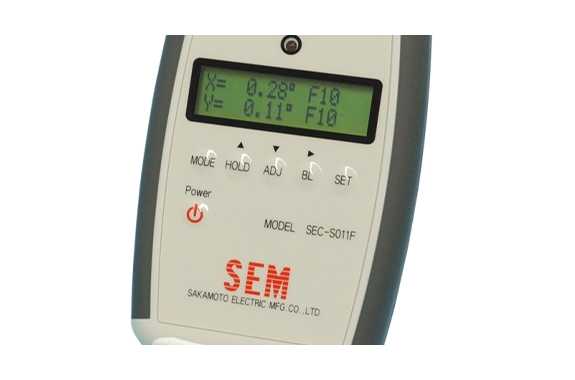

- HOLD and OFFSET functions available
- 1-axis or 2-axes which can choose
- Power source AA battery x 2
Specifications
| Measurement range | ±45 deg |
| Repeat accuracy | ±0.1 deg（±10 deg） |
| ±0.15 deg（＋10.0～＋45.0 deg、－10.0～－45.0 deg） | |
| Resolution | 0.01 deg |
| Response speed | about 200 ms or less |
| Power supply | AA battery (1.5V) x2 |
| Operating temperature/humidity range | 10～40℃（Theoretical value）、20～85％RH（no condensation） |
| Strage temperature/humidity range | －10～75℃（Theoretical value）、20～90％RH（no condensation） |
| Weight monitor sensor | 163 g (Batteries included) 100 g (Batteries included) |
| Dimensions monitor sensor | W79×D24×H117 mm W52×D32×H14.5 mm |
