SAKAMOTO ELECTRIC MFG. CO.
Sakamoto SEC-S011F-V Separate Type Inclinometer
Manufacturer: Sakamoto Electric Mfg. Co., Ltd.
Model: SEC-S011F-V
Features

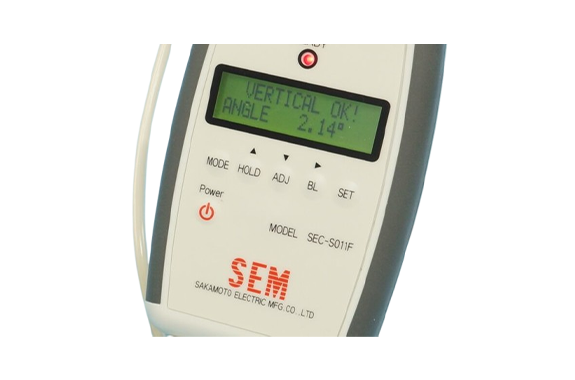

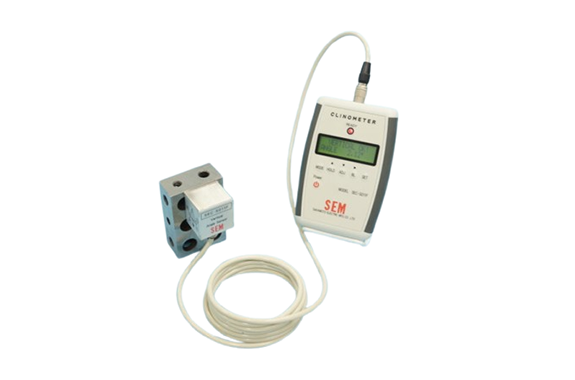

- Separate type with a sensor and a display

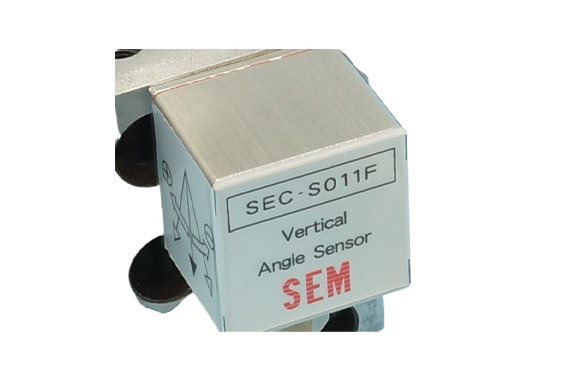

- Ultra-compact sensor measuring W32 x D32 x H28 mm
- HOLD and OFFSET functions available
- 1-axis or 2-axes which can choose
- Power source AA battery x 2
- Sensor has a built-in magnet and can be adsorbed on magnetic materials
Specifications
| Measurement range | X (ANGLE) axis ±45 deg Y (VERTICAL) axis No measurement function (tolerance setting only) |
| Repeat accuracy | ±0.1 deg（±10 deg） |
| ±0.15 deg（＋10.0～＋45.0 deg、－10.0～－45.0 deg） | |
| Resolution | 0.01 deg |
| Response speed | about 200 ms or less |
| Power supply | AA battery (1.5V) x2 |
| Operating temperature/humidity range | 10～40℃ (Theoretical value)、25～85%RH (no condensation) |
| Strage temperature/humidity range | －10～75℃（Theoretical value）、20～90％RH（no condensation) |
| Weight monitor sensor | 163 g (Batteries included) 121 g (Vertical type) |
| Dimensions monitor sensor | W79×D24×H117 mm W32×D32×H28 mm |
