SAKAMOTO ELECTRIC MFG. CO.

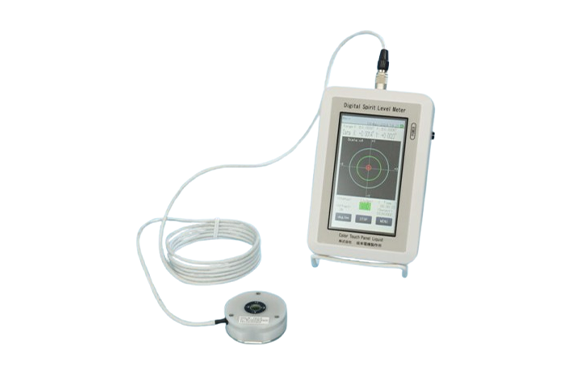

Sakamoto SELN-001B Wired 2-Axis Precision Digital Level
Manufacturer: Sakamoto Electric Mfg. Co., Ltd.
Model: SELN-001B
Features
- Angular accuracy of level X and Y axis is ±0.001degree (17.5μ/m)

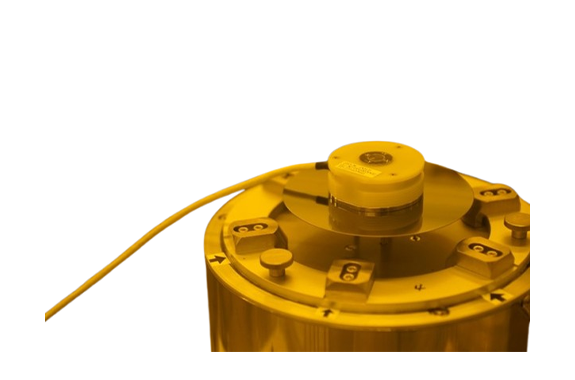

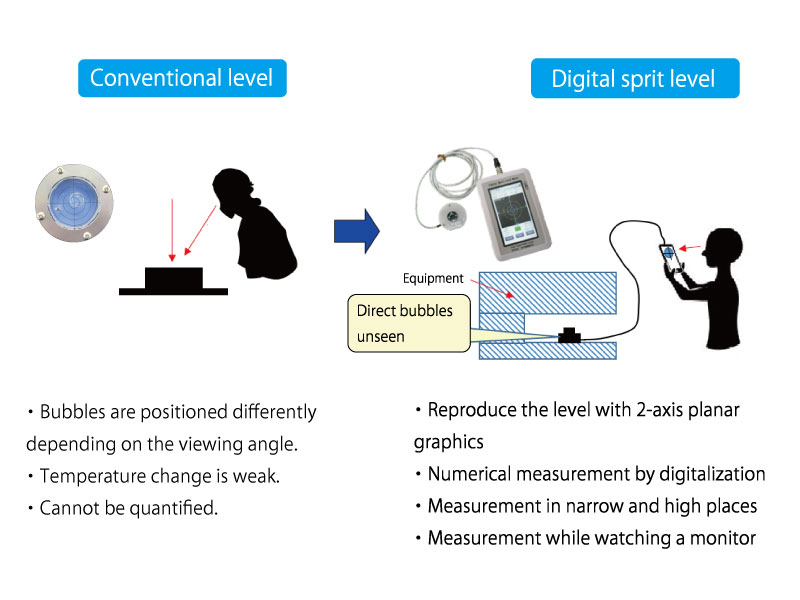

- Enables level observation of areas with narrow vertical spacing.
- Instantaneous measurement results can be read and there is no reading error

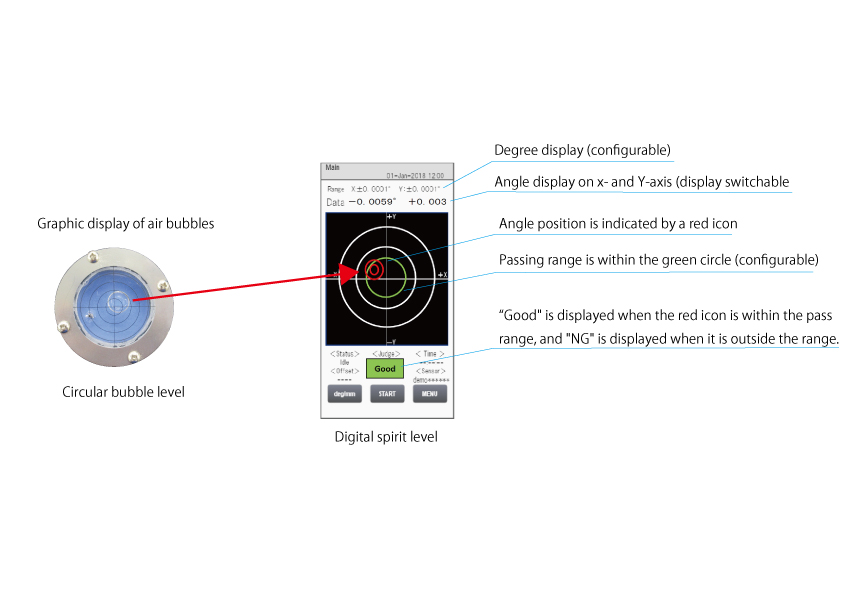

- Simultaneous 2-axis adjustment is possible, allowing even beginners to perform leveling work.

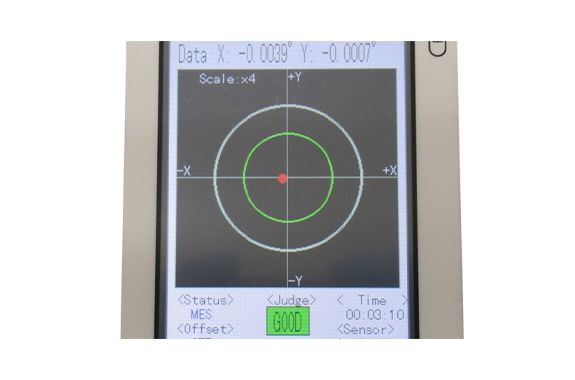

- Setting a passing range for level inspection makes the level adjustment work easy even for beginners.
Specifications
| Sensor part | Linear – Angle | X-direction ±0.3 deg Y-direction ±0.3 deg |
| Measuring Resolution | 0.0002deg | |
| Zero Repeatability | below ±0.001 deg | |
| Response Speed | below 50 ms | |
| Operating Temperature | -10℃～＋50℃ | |
| Body part | Microcontroller | 32 bit |
| A/D section | 14 bit | |
| Measuring range | ±0.3 deg | |
| A/D resolution | 0.000025 deg | |
| Display Unit | 0.0001 deg | |
| Pass Range Setting Range | 0.0001 deg | |
| Range Switching | 0.01/ 0.001/ 0.0001 | |
| OVER display | 0.3 deg or more | |
| Functions | Number of sensor connections | 1 ch |
| Display section | 4.3 inch color LCD Touch panel | |
| 480 x 272 dots | ||
| Power source | Dedicated AC adapter DC6V/ 2A | |
| 4 AA dry cell batteries (1.5V) | ||
| Dimensions | Monitor | W96×D36×H145 mm |
| Sensor (SUS base) | φ50×H19 mm | |
| Cable | 2m | |
| Weight | Monitor | 392 g |
| Sensor | 70 g | |
| Accessories | AA dry cell battery (1.5V) 4 pcs. | |
| Dedicated AC adapter DC6V/ 2A | ||
| Instruction manual | ||
| Warranty |
