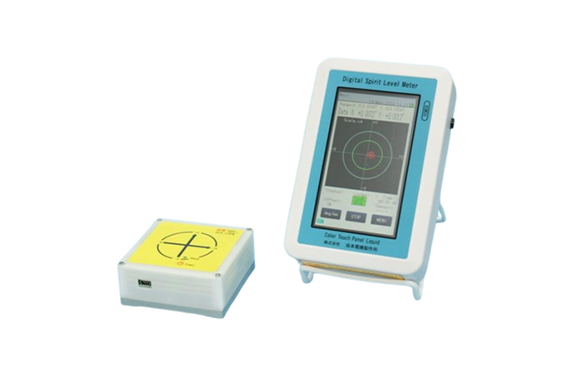

Sakamoto SELN-121BM Wireless 2-Axis Type Digital Spirit Level

Manufacturer: Sakamoto Electric Mfg. Co., Ltd.
Model: SELN-121BM

Features

This is a powerful tool for level measurement in areas where a level cannot normally be placed. It can also be used on a robot arm!
Allows level adjustment while checking the monitor at a position away from the measurement surface.
Enables level observation of areas with narrow vertical spacing.
Wireless system enables two-person operation to become one-person operation!
Easy creation of work reports by data transfer function to a PC.

Sensor	Linear angle output	X axis　±0.3 deg Y axis　±0.3 deg
	Zero-point repeat accuracy	±0.001 deg or less
	Speed of response	50 ms or less
	Operating temperature	−10℃〜＋50℃
Monitor	Micro processor	32bit
	A/D converter	14bit
	Measurement range	±0.3 deg
	A/D resolution	0.000025 deg
	Display unit	0.0001 deg
	Pass range setting unit	0.0001 deg
	Range change	0.01/ 0.001/ 0.0001
	OVER display	0.3 deg or more
	Number of sensors	1
	Frequency band	920MHz（JAPAN） ※Overseas use may not be supported due to the application of radio wave laws in the target country.
	Measured date	Save to file (Internal memory) → Maximum 15 files, 120 points/file External data output → Micro SD card Data real-time output → USB cable
	Display	4.3-inch color LCD touch panel 480×272 dot
Power supply	Monitor SELN-121BRM	AC/DC adaptor DC6V/ 2A or AA battery (1.5V) ×4
Power supply	Sensor SELN-121BTM	AAA battery (1.5V) ×3
Dimension	Monitor	W96 mm × D36 mm × H145 mm
Dimension	Sensor	W75 mm × D75 mm × H32 mm
Weight	Monitor	372 g
	Sensor
	SUS bottom plate	240 g
	Aluminum bottom plate※	160 g
	※Optional
Accessories		AA battery (1.5V)　 ×4
		AAA battery (1.5V)　 ×4
		AC/DC adapter DC6V/ 2A
		Micro SD card
		Manual
		Guarantee
