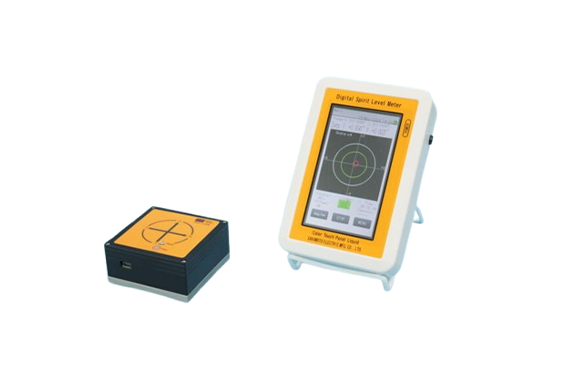

Sakamoto SELN-131BM Wireless 2-Axis Type Digital Spirit Level

Manufacturer: Sakamoto Electric Mfg. Co., Ltd.
Model: SELN-131BM

Features

This is a powerful tool for level measurement in areas where a level cannot normally be placed. It can also be used on a robot arm!
Allows level adjustment while checking the monitor at a position away from the measurement surface
Enables level observation of areas with narrow vertical spacing.
Corresponding to the radio wave certification of various countries sequentially
Even beginners can easily adjust the level by setting the acceptable angle range!

Sensor	Linear angle output	X axis　±0.3 deg Y axis　±0.3 deg
	Zero-point repeat accuracy	±0.001 deg or less
	Speed of response	50 ms or less
	Operating temperature	10℃～+50℃
Monitor	Micro processor	32 bit
	A/D converter	14 bit
	Measurement range	±0.3 deg
	A/D resolution	0.000025 deg
	Display unit	0.0001 deg
	Pass range setting unit	0.0001 deg
	Range change	0.01/ 0.001/ 0.0001
	OVER display	0.3 deg or more
Function	Number of sensors	1
	Frequency band	2.4GHz（Zigbee）Overseas(U.S. FCC, Taiwan NCC, Korea KC) ※Also available in Japan
	Measured data	Save to file (Internal memory) → Maximum 15 files, 120 points/file External data output → Micro SD card Data real-time output → USB cable
	Display	4.3-inch color LCD touch panel 480×272 dot
Power supply	Monitor SELN-131BRM	AC/DC adaptor DC5.9V/ 2A or AA battery (1.5V) ×4
Power supply	Sensor SELN-131BTM	AAA battery (1.5V) ×3 or USB
Dimension	Monitor	W96 mm × D36 mm × H145 mm
Dimension	Sensor	W75 mm × D75 mm × H36 mm
Weight	Monitor	377 g
	Sensor
	SUS bottom plate※	244 g
	Aluminum bottom plate※	164 g
	※Optional
Accessories		AA battery (1.5V)　×4
		AAA battery (1.5V)　×4
		AC/DC adapter DC5.9V/ 2A
		Micro SD card
		Ferrite core x2
		Manual
		Guarantee
