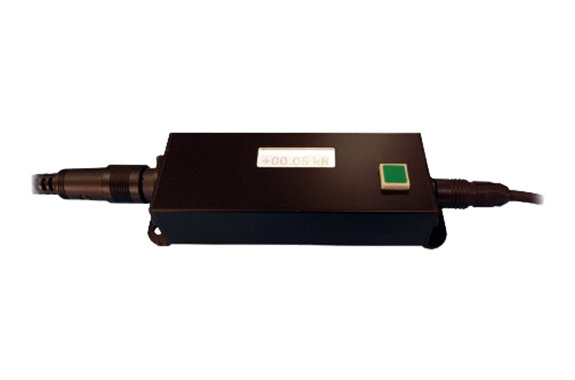

SAN-E TEC CTS Series Arithmetic Displays For Sensors
Manufacturer: SAN-E TEC Co., Ltd.
Model: CTS Series
Features
- Equipped with a display function on the amplifier and easy to measurement of torque or load
- Support zero-reset function
- Spec of power supply voltage, power consumption and operating temperature are the same as sensor
Specifications
| Applicable products | CTS series |
| Display | LCD with backlight (4-digits) |
| Display method | Tracking |
| Display unit | Nm, Ncm, Nmm |
| Display range | Full scale of torque |
| Measurement direction | + : CW, – : CCW (Seen from the load side) |
| Adjustment of zero display | Front button SW |
