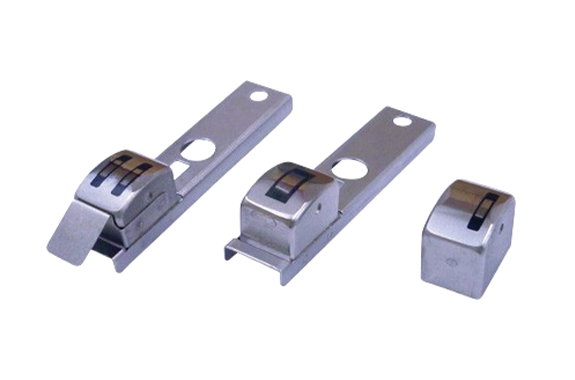

SAN-E TEC Magnetic Heads For Card Readers
Manufacturer: SAN-E TEC Co., Ltd.
Specifications
| Model name | CH-1R/CH-1R2R | CH-123CS3H | PC-2R | CH-72S3H | |
|---|---|---|---|---|---|
| Standard | JIS-Ⅰ | JIS-Ⅰ | JIS-Ⅱ | JIS-Ⅱ | |
| Function | Read | Read/Write | Read | Read/Write | |
| Track width | Read | 1mm | 1mm | 2mm | 2mm |
| Write | 3mm | 7mm | |||
| DC resistance | Read | 95Ω | 265Ω | 125Ω | 200Ω |
| Write | 2.4Ω | 3.2Ω | |||
| Inductance | Read | 48mH | 135mH | 105mH | 150mH |
| Write | 3mH | 6.5mH | |||
| Reading output | 23mVp-p | 23mVp-p | 45mVp-p | 50mVp-p | |
| Conveying speed * | 19cm/sec | ||||
| Recording density * | 210BPI | ||||
| Magnetic tape * | JL6S | ||||
| Resolution (F2/F1) | 80 or more | ||||
| Saturation current（Hc=218kA/ｍ） | 300ｍＡ | 110ｍＡ | |||
| Rise time | 100μＳ or less | 100μＳ or less | |||
| Insulation resistance | 50ＭΩ or more | ||||
| Ground resistance | 5Ω or less | ||||
*The conveying speed corresponds to 9.5 to 100cm/sec. The recording density corresponds to 75 to 420FCI. The recording medium corresponds to 21.5k to 239kA/m (270 to 3000Oe).
