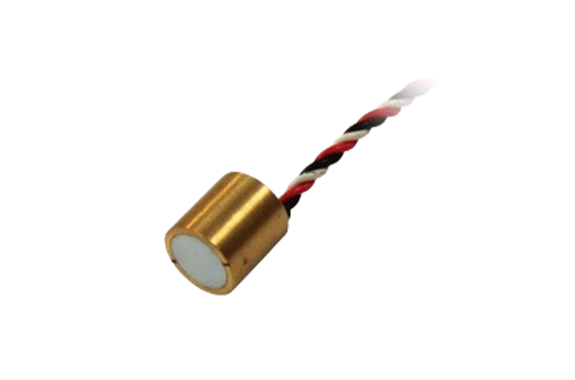

SAN-E TEC SM-S10C Metal Material Detection Sensors/Metal Detection Sensors
Manufacturer: SAN-E TEC Co., Ltd.
Model: SM-S10C
Features
- High-sensitivity differential type magnetic sensor
- Detect target objects faithfully, regardless of movement
- Good responsiveness that allows response to acceleration of transport speed
- Small size, lightweight
Specifications
| Model | SM-S10C |
|---|---|
| DC resistance (Measured temperature: 20℃) | Primary side:17Ω ±20％ Secondary side: 31Ω ±20％ |
| Inductance (Measured: 1kHz) | Primary side: 0.7mH ±20％ Secondary side: 1.5mH ±20％ |
| Output Output according to | Conditions: Primary side: 6Vp-p(50kHz, sine wave) Iron: 650mVp-p or more |
| Allowable current | Primary side 15mA (rms） |
| Operating temperature | －25℃ to +70℃ |
| Operating humidity | 35％～95％R.H. (no condensation） |
| Storage temperature | －25℃ to +85℃ |
| Storage humidity | 35％ to 95％R.H. (no condensation） |
| Temperature coefficient of output 20℃ standard | +20℃ to +70℃ +0.17％／℃ +20℃ to －10℃ －0.17％／℃ |

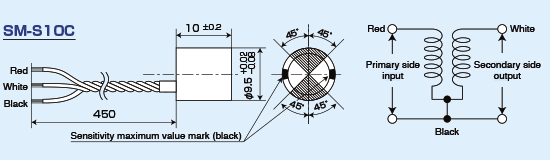

Dimensional
