SAN-E TEC Co.

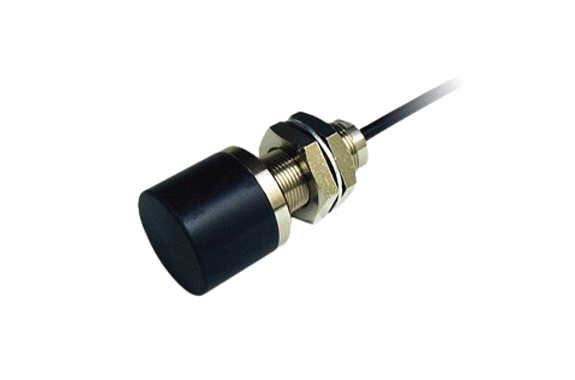

SAN-E TEC SS-1010D Space Sensors
Manufacturer: SAN-E TEC Co., Ltd.
Model: SS-1010D
Features
- Eddy current type
- Miniature, lightweight
- Single power source (built-in stabilized power-supply circuit)
- Waterproof construction
Specifications
| Item | Specifications |
|---|---|
| Power supply voltage (ripple (p-p): 5% or less) | DC.+5V to +18V |
| Stabilized power supply circuit | ー |
| Consumption current | Max. 15mA |
| Measurement range | 0.0㎜ to 1.2㎜ |
| Resolution | 0.2％F.S. |
| Output voltage (iron □40×3mm) | 2V to 5.2V (supply voltage DC 15V) |
| Frequency characteristic | DC.to 5ｋHz(-3dB) |
| Output form | Open collector |
| Operating temperature range | ー20℃ to +85℃ |
| Protective structure | IP65 |
| Vibration performance | 10Hz to 55Hz double amplitude: 1.5㎜ |
| Impact resistance | 50G |
| Tightening torque | 50kgf-cm or less |
* If you need an indicator, please consult us

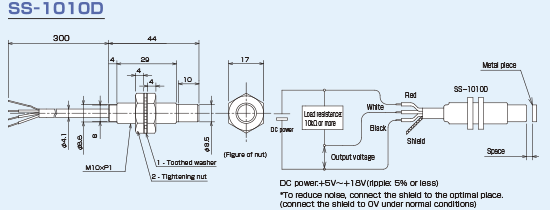

Dimensional
