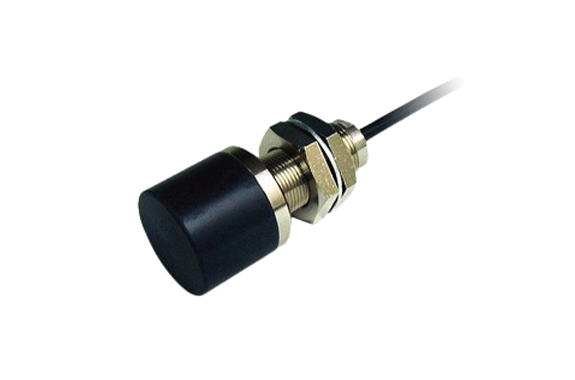

SAN-E TEC SS-280L Space Sensors
Manufacturer: SAN-E TEC Co., Ltd.
Model: SS-280L
Specifications
| Item | Specifications |
|---|---|
| Power supply voltage (ripple (p-p): 5% or less) | DC.+12V to +17V |
| Stabilized power supply circuit | Built-in |
| Consumption current | Max. 8mA |
| Measurement range | 0.0㎜ to 12㎜ |
| Resolution | 0.2％F.S. |
| Output voltage (iron □40×3mm) | 0.8V to 5.3V |
| Frequency characteristic | DC. to 5ｋHz(-3dB) |
| Output form | Open collector |
| Operating temperature range | ー20℃ to +85℃ |
| Protective structure | IP65 |
| Vibration performance | 10Hz to 55Hz double amplitude: 1.5㎜ |
| Impact resistance | 50G |
| Tightening torque | 150 kgf･ｃｍ or less |

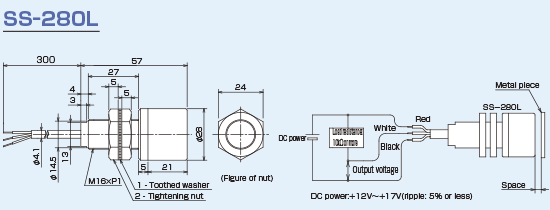

Dimensional
