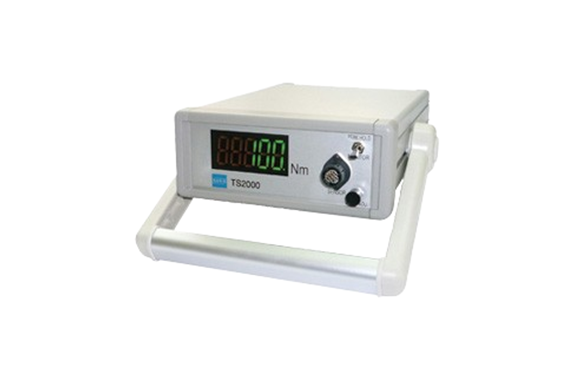

SAN-E TEC TSxxxx Arithmetic Displays For Sensors
Manufacturer: SAN-E TEC Co., Ltd.
Model: TSxxxx
Features
- Peak hold measurement
- One push zero-reset function
- Display CW-CCW without switching (±Display)
- Possible to measure 8 types of sensors
Specifications
| Tracking display | MONITOR (Display change SW) |
| Peak hold | PEAK HOLD (Display change SW) |
| Zero-reset | ZERO ADJ (Front button SW) |
| Display update speed | FAST or SLOW (Rear panel SW) |
| Rated torque or load select | SENSOR SELECT (Rear panel sensor SW) * Possible to setting 8 types |
| Power supply voltage | DC +24V (With AC adapter) [AC adapter: 100 to 240V AC) |
| Power consumption | 300mA (Included sensor) |
| Operating temperature | 0 to +40 degree C |
| Dimensions | 160(W)x66(H)x230(D) |
