Sanko Co.
Sanko 41A Suncret Oricon
Manufacturer: Sanko Inc.
Model: 41A.
Features
Bottom Shape
Pallet Compatibility Diagram
Specifications
| Item No. | 554280 |
|---|---|
| Outer dimensions | 530×366×281mm |
| Inner dimensions | 494×336×252mm |
| Effective inner dimensions | 490×333×252mm |
| Compressive load | 12.64kN(1290kgf) |
| hue | blue blue
|
| material | PP |
| Unit of Measure | 5
|
| Contents | 41.7L |
| option | Medium lid (701404), sun fastener 1, 3, 4 type |
| Special Mechanisms | 4 Grained surface for label peeling on the side and top of the lid |
| Card Mounting Surface | Short sides 21, 56-A, 83, 84, 87, 91, 99, 140, 142-B, 162 |
| Mating Products |
List of other mating products |
| remarks | There is a solid surface on the bottom. |

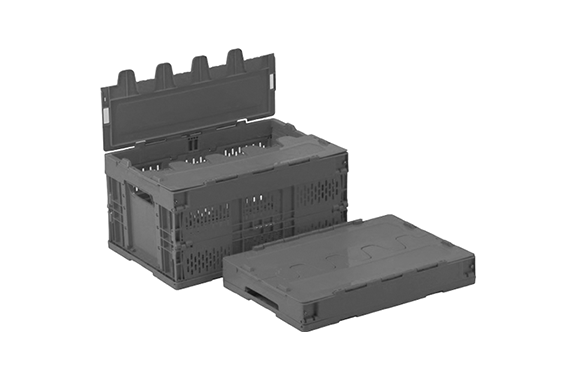

Foldable Container with Lid, Stackable by Lid
Explanation of Type Mark
This is a “Sankurett Ori-Con” type, a foldable container with an integrated lid. Like other Ori-Con containers, it can be folded to reduce storage space and shipping costs. Additionally, it allows for stacking with the lid on. Because the lid is integrated with the container body, it won’t detach due to vibrations or wind, and there’s no risk of loss. The lid is designed with an interlocking wavy structure that closes tightly when shut. Even if the lid is deformed, it becomes difficult to remove contents, thus enhancing security.
Card Holder 21 Type
| Item No. | 800311 |
|---|---|
| Outer dimensions | 160×47×10mm |
| hue | transparent transparent
|
| remarks | one-touch |
Card Insert 56-A
| Item No. | 800373 |
|---|---|
| Outer dimensions | 160×46×11mm |
| hue | transparent transparent ※The color is a reference sample. It may differ from the actual product. |
| remarks | one-touch |
Card Holder Type 83
| Item No. | 800259 |
|---|---|
| Outer dimensions | 160×50×11mm |
| hue | transparent transparent
|
| remarks | one-touch |
Card Holder Type 84
| Item No. | 800266 |
|---|---|
| Outer dimensions | 160×85×9mm |
| hue | transparent transparent
|
| remarks | one-touch |
Card Holder Type 87
| Item No. | 800269 |
|---|---|
| Outer dimensions | 160×115×9mm |
| hue | transparent transparent
|
| remarks | one-touch |
