Sanko Co.
Sanko 51B-B Sancret Oricon
Manufacturer: Sanko Inc.
Model: 51B-B.
Features:
Bottom Shape
Pallet Compatibility Diagram
Specifications
| Item No. | 554550 |
|---|---|
| Outer dimensions | 530×366×334mm |
| Inner dimensions | 494×336×305mm |
| Effective inner dimensions | 491×335×305mm |
| Compressive load | 7.35kN(750kgf) |
| hue | blue blue
|
| material | PP |
| Unit of Measure | 5
|
| Contents | 50.2L |
| option | Sun zipper 1, 4 type |
| Special Mechanisms | Some of the four sides have grain surfaces. |
| Overall height at Orita Tami | 95mm |
| Card Mounting Surface | Both short sides 21, 55, 56 type-A, 62, 72, 83, 84, 87, 99, 142-B, 162, 175-A |
| Mating Products |
|
| remarks | 554550: (With handle hole) * Side transparent type is also available. The compressive load is different from that of ordinary products. |
Slanted Grid Rib

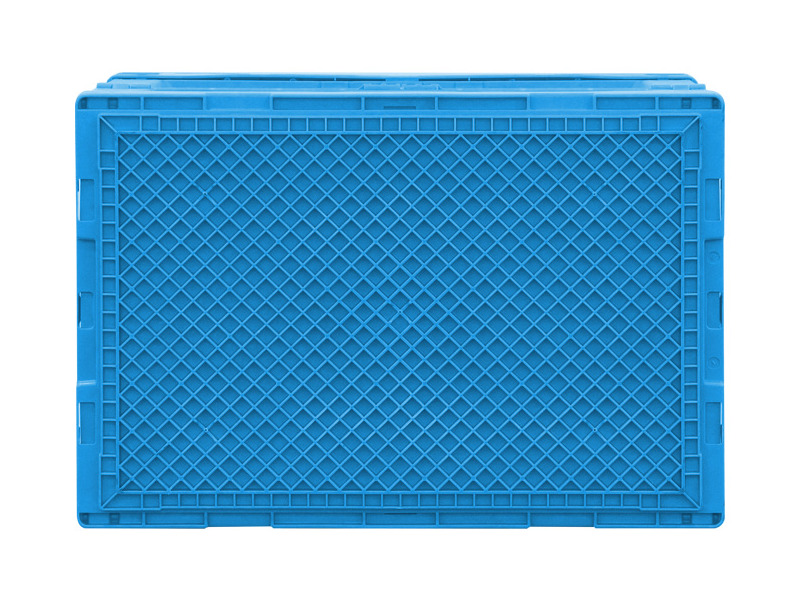

Explanation of Bottom Shape
- On the bottom surface, slanted grid-shaped ribs (vertical plate-shaped structures erected perpendicularly to reinforce the flat surface) are installed. This rib structure is particularly excellent in rollability (such as for rolling containers) and allows for smooth movement. Additionally, it is designed to suppress warping or twisting. Some models with drainage holes have 8 mm to 10 mm diameter drainage holes installed on the bottom. The number and location of the holes vary depending on the container.
- The image is for illustrative purposes only. It may differ from the actual product. Please contact us if you need to confirm details.
- Some models may have holes in certain areas of the bottom surface.
- Some models may include lattice-shaped ribs on parts of the bottom.
- Some models may have flat surfaces on parts of the bottom.

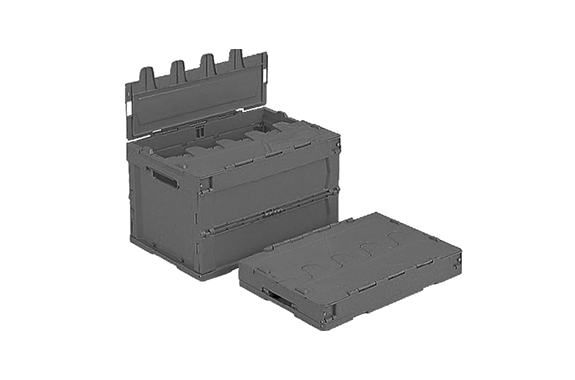

Foldable Container with Lid, Stackable by Lid
Explanation of Type MarkThis is a “Sankurett Ori-Con” type, a foldable container with an integrated lid. Like other Ori-Con containers, it can be folded to reduce storage space and shipping costs. Additionally, it allows for stacking with the lid on. Because the lid is integrated with the container body, it won’t detach due to vibrations or wind, and there’s no risk of loss. becomes difficult to remove contents, thus enhancing security.

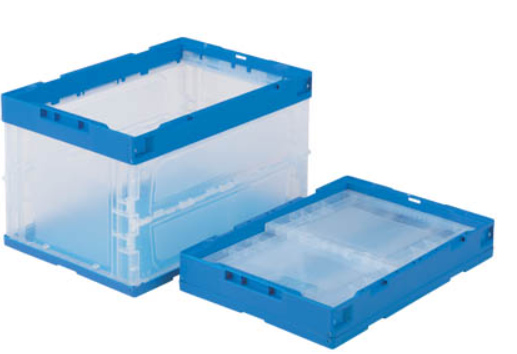

Available Transparent Type
Explanation of Type MarkOricon and Suncrate Oricon include versions with transparent side panels in their lineup. The transparent sides improve visibility, making it easy to check the contents even when the containers are stacked, without the need to unstack them.
Card Holder 21 Type
Item No. 800311 Outer dimensions 160×47×10mm hue transparenttransparent- ※The color is a reference sample. It may differ from the actual product.
remarks one-touch
Card holder 55 type
Item No. 800368 Outer dimensions 176×68×10mm hue transparenttransparent- ※The color is a reference sample. It may differ from the actual product.
remarks one-touch
Card Insert 56-A
Item No. 800373 Outer dimensions 160×46×11mm hue transparenttransparent※The color is a reference sample. It may differ from the actual product.
remarks one-touch
Card Holder 62 Type
Item No. 800384 Outer dimensions 190×117×9mm hue transparenttransparent- ※The color is a reference sample. It may differ from the actual product.
remarks one-touch
Card Holder Type 72
Item No. 800394 Outer dimensions 47×40×9mm remarks one-touch
