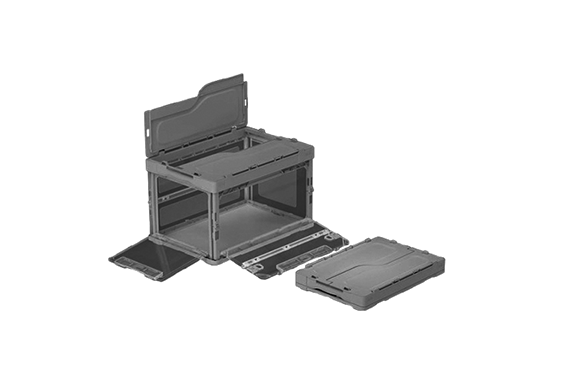

Sanko 51B Home Oricon Rack With Long And Short Side Doors With Lid
Manufacturer: Sanko Inc.
Model: 51B.
Features
Even if it is installed in a narrow place, the contents can be taken in and out from the door on the short side. It can be used in any installation location.
The frontage is 1.2 times ~ 1.5 times wider than conventional products, making it easy to put in and take out the contents.
The long side uses a revolving door type that folds in the middle. Even if the door is opened in a stacked state, it will not interfere with the lower frontage.
Explanatory Images
Specifications
| Item No. | 562740 |
|---|---|
| Outer dimensions | 530×366×334mm |
| Inner dimensions | 494×336×309mm |
| Effective inner dimensions | 493×335×309mm |
| Compressive load | 3.77kN(384kgf) |
| hue | browntransparent Brown/Transparent whitetransparent White/Transparent
|
| material | PP |
| Unit of Measure | 5
|
| Contents | 50.2L |
| Special Mechanisms | With a revolving door folded on one long side and a revolving door on one short side |
| Overall height at Orita Tami | 77mm |
| Card Mounting Surface | Long sides 21, 55, 56-A, 72, 83, 84, 91, 99, 140, 142-B, 162, 175-A Both short sides 21, 55, 56-A, 62, 72, 83, 84, 87, 91, 99, 140, 142-B, 162, 175-A |
| Mating Products |
|
| remarks | Frontage size: 210×463mm (long side) 227 ×270mm |
Slanted Grid Rib
Explanation of Bottom Shape
- On the bottom surface, slanted grid-shaped ribs (vertical plate-shaped structures erected perpendicularly to reinforce the flat surface) are installed. This rib structure is particularly excellent in rollability (such as for rolling containers) and allows for smooth movement. Additionally, it is designed to suppress warping or twisting. Some models with drainage holes have 8 mm to 10 mm diameter drainage holes installed on the bottom. The number and location of the holes vary depending on the container.
- The image is for illustrative purposes only. It may differ from the actual product. Please contact us if you need to confirm details.
- Some models may have holes in certain areas of the bottom surface.
- Some models may include lattice-shaped ribs on parts of the bottom.
- Some models may have flat surfaces on parts of the bottom.
Card Holder 21 Type
| Item No. | 800311 |
|---|---|
| Outer dimensions | 160×47×10mm |
| hue | transparent transparent
|
| remarks | One-touch |
Card holder 55 type
| Item No. | 800368 |
|---|---|
| Outer dimensions | 176×68×10mm |
| hue | transparent transparent
|
| remarks | One-touch |
Card Insert 56-A
| Item No. | 800373 |
|---|---|
| Outer dimensions | 160×46×11mm |
| hue | transparent transparent * The color is a reference sample. It may differ from the actual product. |
| remarks | One-to-one |
Card Holder 62 Type
| Item No. | 800384 |
|---|---|
| Outer dimensions | 190×117×9mm |
| hue | transparent transparent
|
| remarks | one-touch |
Card Holder Type 72
| Item No. | 800394 |
|---|---|
| Outer dimensions | 47×40×9mm |
| remarks | One-touch |
