Sanko 51B Sancret Oricon 51B Transparent

Manufacturer: Sanko Inc.
Model: 51B.

Features

Bottom Shape

Pallet Compatibility Diagram

Specifications

Item No.	554460
Outer dimensions	530×366×340mm
Inner dimensions	494×336×306mm
Effective inner dimensions	491×335×306mm
Compressive load	4.61kN(470kgf)
hue	transparentblue Transparent/Blue ※The color is a reference sample. It may differ from the actual product.
material	PP
Unit of Measure	5 ※If you place an order less than the indicated quantity, you will be charged a separate freight charge.
Contents	50.3L
option	Sun fastener 3 and 4 types
Special Mechanisms	There is a grain surface on both long sides and both short sides, and a grain surface on the entire surface of the top surface of the lid.
Overall height at Orita Tami	101mm
Card insertion (standard) compatible products	Card Holder 21 Type Card holder 55 type Card Insert 56-A Card Holder 62 Type Card Holder Type 72 List of other compatible products
Card Mounting Surface	Both short sides 21, 55, 56 type-A, 62, 72, 83, 84, 87, 99, 142-B, 162, 175-A
Mating Products	Petanco Series Sancret Oricon 51B Series Oricon P51B Series Oricon 51B Oricon 51B (Transparent) Oricon 51B-B (Transparent) Oricon 51B-B Oricon P31B Oricon P31B (Transparent)
remarks	554460: 51B (without holding hole) 554480 : 51B (2) (with holding hole) Holding hole is a made-to-order product with a holding holePlease contact us for hue with holding hole

Slanted Grid Rib

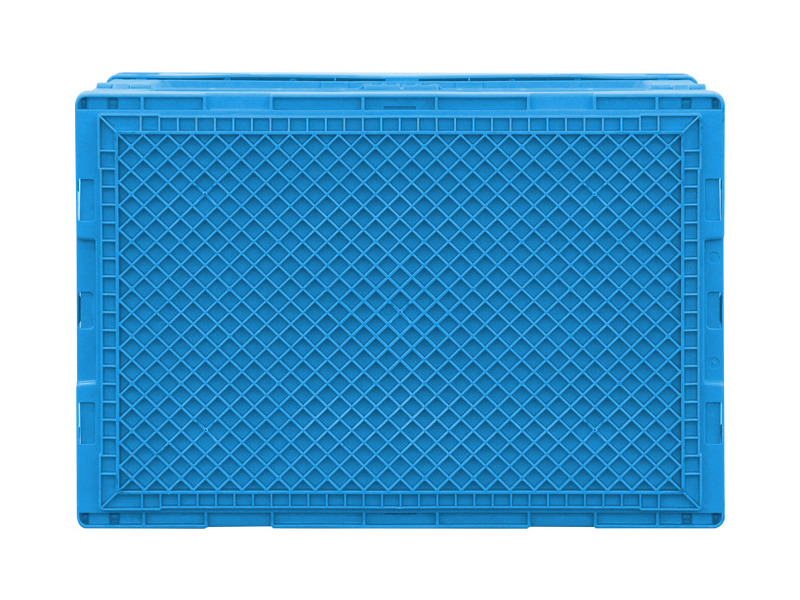

Explanation of Bottom Shape

On the bottom surface, slanted grid-shaped ribs (vertical plate-shaped structures erected perpendicularly to reinforce the flat surface) are installed. This rib structure is particularly excellent in rollability (such as for rolling containers) and allows for smooth movement. Additionally, it is designed to suppress warping or twisting. Some models with drainage holes have 8 mm to 10 mm diameter drainage holes installed on the bottom. The number and location of the holes vary depending on the container.
The image is for illustrative purposes only. It may differ from the actual product. Please contact us if you need to confirm details.
Some models may have holes in certain areas of the bottom surface.
Some models may include lattice-shaped ribs on parts of the bottom.
Some models may have flat surfaces on parts of the bottom.

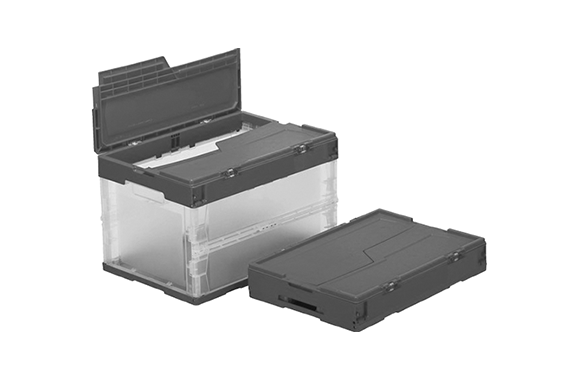

Foldable Container with Lid, Stackable by Lid

Explanation of Type Mark

This is a “Sankurett Ori-Con” type, a foldable container with an integrated lid. Like other Ori-Con containers, it can be folded to reduce storage space and shipping costs. Additionally, it allows for stacking with the lid on. Because the lid is integrated with the container body, it won’t detach due to vibrations or wind, and there’s no risk of loss. becomes difficult to remove contents, thus enhancing security.

Card Holder 21 Type

Item No.	800311
Outer dimensions	160×47×10mm
hue	transparent transparent ※The color is a reference sample. It may differ from the actual product.
remarks	one-touch

Card holder 55 type

Item No.	800368
Outer dimensions	176×68×10mm
hue	transparent transparent ※The color is a reference sample. It may differ from the actual product.
remarks	one-touch

Card Insert 56-A

Item No.	800373
Outer dimensions	160×46×11mm
hue	transparent transparent ※The color is a reference sample. It may differ from the actual product.
remarks	one-touch

Card Holder 62 Type

Item No.	800384
Outer dimensions	190×117×9mm
hue	transparent transparent ※The color is a reference sample. It may differ from the actual product.
remarks	one-touch
