Sanko Co.
Sanko 54B Sancret Oricon
Manufacturer: Sanko.
Model: 54B
Features
Bottom shape
Pallet Compatibility Diagram
Specifications
| Item No. | 554380 |
|---|---|
| Outer dimensions | 530×366×351mm |
| Inner dimensions | 494×335×322mm |
| Effective inner dimensions | 490×334×322mm |
| Compressive load | 7.45kN(760kgf) |
| hue | blue blue
|
| material | PP |
| Unit of Measure | 5
|
| Contents | 53.3L |
| option | Sun fasteners 1, 3 and 4 types |
| Overall height at Orita Tami | 95mm |
| Card Mounting Surface | Both short sides 21, 55, 56 type-A, 62, 72, 83, 84, 87, 99, 142-B, 162, 175-A |
| Mating Products |
|
| remarks | * Transparent side type is also available. The compressive load is different from that of ordinary products. |
Slanted Grid Rib

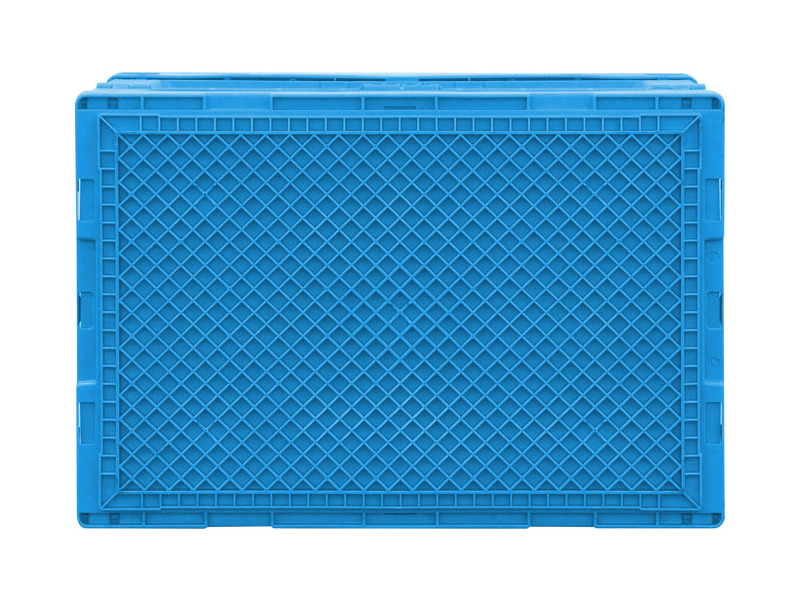

Explanation of Bottom Shape
- On the bottom surface, slanted grid-shaped ribs (vertical plate-shaped structures erected perpendicularly to reinforce the flat surface) are installed. This rib structure is particularly excellent in rollability (such as for rolling containers) and allows for smooth movement. Additionally, it is designed to suppress warping or twisting. Some models with drainage holes have 8 mm to 10 mm diameter drainage holes installed on the bottom. The number and location of the holes vary depending on the container.
- The image is for illustrative purposes only. It may differ from the actual product. Please contact us if you need to confirm details.
- Some models may have holes in certain areas of the bottom surface.
- Some models may include lattice-shaped ribs on parts of the bottom.
- Some models may have flat surfaces on parts of the bottom.

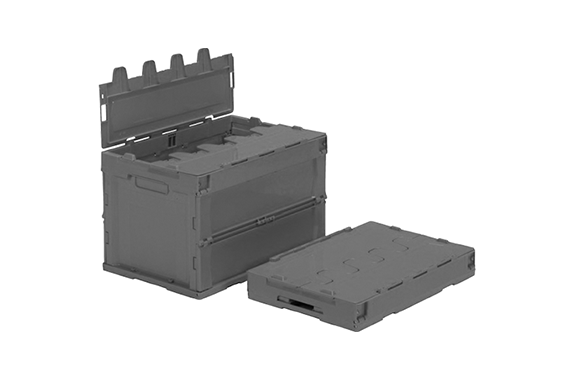

Foldable Container with Lid, Stackable by Lid

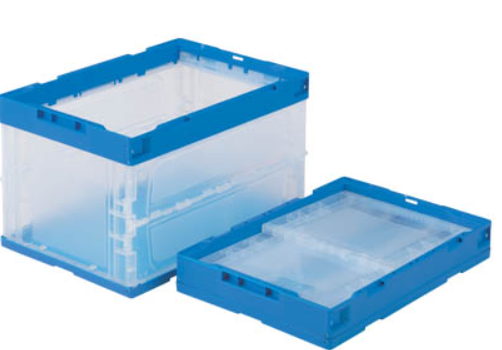

Available Transparent Type
Explanation of Type Mark
We also offer a lineup of containers, such as Oricon and Suncrate Oricon, with transparent side panels. The transparency of the sides makes the contents easy to see, so even when stacked, you can check the stored items without having to unstack them.
Card Holder 21 Type
| Item No. | 800311 |
|---|---|
| Outer dimensions | 160×47×10mm |
| hue | transparent transparent
|
| remarks | one-touch |
Card holder 55 type
| Item No. | 800368 |
|---|---|
| Outer dimensions | 176×68×10mm |
| hue | transparent transparent
|
| remarks | one-touch |
Card Insert 56-A
| Item No. | 800373 |
|---|---|
| Outer dimensions | 160×46×11mm |
| hue | transparent transparent ※The color is a reference sample. It may differ from the actual product. |
| remarks | one-touch |
Card Holder 62 Type
| Item No. | 800384 |
|---|---|
| Outer dimensions | 190×117×9mm |
| hue | transparent transparent
|
| remarks | one-touch |
Card Holder Type 72
| Item No. | 800394 |
|---|---|
| Outer dimensions | 47×40×9mm |
| remarks | one-touch |
