Sanko B#29SH SN Container

Manufacturer: Sanko Inc.
Model: B#29SH.

Features

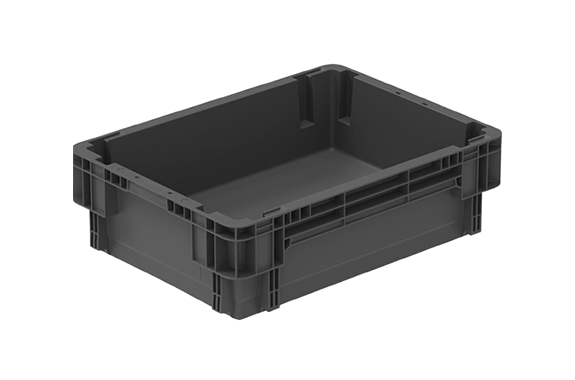

SN Container B#29SH

                                                           Bottom Shape

                                                         Pallet Compatibility Diagram

Specifications

Item No.203356
Outer dimensions600×440×183mm
Inner dimensions550×390×158mm
Effective inner dimensions527×367×143mm
Compressive load50 kN or more (5,100 kgf or more)
hue
  • The color is a reference sample. It may differ from the actual product.
materialPA+Glass
Unit of Measure3

  • If you place an order less than the indicated quantity, you will be charged a separate freight charge.
Contents32.2L
Nesting height93mm
Special MechanismsDirectionality can be confirmed by arrow engraving on the flange
Usage exampleshigh-temperaturepressworkhousing
remarksExcellent bottom strength

                                                    Slanted Grid Rib

Explanation of Bottom Shape

  • On the bottom surface, slanted grid-shaped ribs (vertical plate-shaped structures erected perpendicularly to reinforce the flat surface) are installed. This rib structure is particularly excellent in rollability (such as for rolling containers) and allows for smooth movement. Additionally, it is designed to suppress warping or twisting. Some models with drainage holes have 8 mm to 10 mm diameter drainage holes installed on the bottom. The number and location of the holes vary depending on the container.
  • The image is for illustrative purposes only. It may differ from the actual product. Please contact us if you need to confirm details.
  • Some models may have holes in certain areas of the bottom surface.
  • Some models may include lattice-shaped ribs on parts of the bottom.
  • Some models may have flat surfaces on parts of the bottom.

                                                         180° Stackable in Same Color by Rotation

Type Mark Explanation

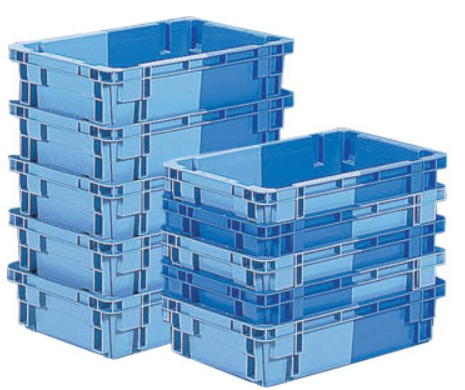

  • This type is used in two-tone containers (SN containers), and is also referred to as a same-color, same-shape stacking type. By rotating the product horizontally 180°, it allows for two modes: stacking (piling up) and nesting (nesting/storage).
    Stacking is useful for product storage and transport, while nesting is used for compact storage when empty.
    By nesting empty boxes, their volume can be reduced, saving storage space and transportation costs.
  • Designed with consideration for stability during stacking, it has excellent strength and can support safe transportation even when stacked.
    The load capacity when stacked (stacking strength) is maximized with a nesting overlap rate of 4%.
    Please check the usable load limit based on this value.
Item No.800367
Outer dimensions95×88×8mm
hue
  • The color is a reference sample. It may differ from the actual product.
remarksone-touch
Item No.800371
Outer dimensions95×75×8mm
hue
  • The color is a reference sample. It may differ from the actual product.
remarksone-touch
Item No.800372
Outer dimensions95×65×8mm
hue
  • The color is a reference sample. It may differ from the actual product.
remarksone-touch
