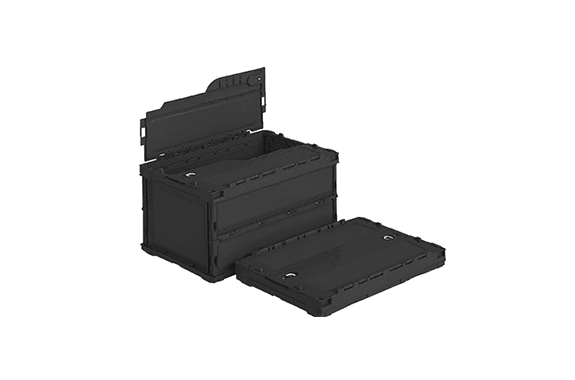

Sanko C-40B Petanko

Manufacturer: Sanko Inc.
Model: C-40B.

Features

Item No.	558510
Outer dimensions	530×366×283mm
Inner dimensions	494×336×258mm
Effective inner dimensions	493×335×258mm
Compressive load	4.35kN（444kgf）
hue	blue blue ※The color is a reference sample. It may differ from the actual product.
material	PP
Unit of Measure	5 ※If you place an order less than the indicated quantity, you will be charged a separate freight charge.
Contents	42.5L
option	Sun fastener type 7
Special Mechanisms	4 Side and upper frame short side corners, and a grain surface for label peeling on the top of the lid
Overall height at Orita Tami	67mm
Card Mounting Surface	Both short sides 21, 55, 56 type-A, 62, 72, 83, 84, 87, 91, 99, 140, 142-B, 162, 175-A
Mating Products	Petanco Series Madocon 50B Series Oricon 50B Series Sancret Oricon 51B Series Oricon P51B Series Sancret Oricon HB-31B Suncret Oricon HB-51B Madocon HBC-51B-D
remarks	With sun lock * Oricon P31B, 51B, 51B-B cannot be mated.

On the bottom surface, slanted grid-shaped ribs (vertical plate-shaped structures erected perpendicularly to reinforce the flat surface) are installed. This rib structure is particularly excellent in rollability (such as for rolling containers) and allows for smooth movement. Additionally, it is designed to suppress warping or twisting. Some models with drainage holes have 8 mm to 10 mm diameter drainage holes installed on the bottom. The number and location of the holes vary depending on the container.
The image is for illustrative purposes only. It may differ from the actual product. Please contact us if you need to confirm details.
Some models may have holes in certain areas of the bottom surface.
Some models may include lattice-shaped ribs on parts of the bottom.
Some models may have flat surfaces on parts of the bottom.

- This type of Ori-Con or Sankurett container does not use metal screws or shaft components. Because of this, there’s no need to separate metal parts during disposal when the container reaches the end of its life. Additionally, for customers who use metal detectors or foreign object inspection systems, the Ori-Con itself, which contains no metal parts, will not be detected by mistake as a foreign object.
Card Holder 21 Type
Item No. 800311
Outer dimensions 160×47×10mm
hue
transparent
transparent
* The color is a reference sample. It may differ from the actual product.
remarks One-touch
Card holder 55 type
Item No. 800368
Outer dimensions 176×68×10mm
hue
transparent
transparent
* The color is a reference sample. It may differ from the actual product.
remarks One-touch
Card Insert 56-A
Item No. 800373
Outer dimensions 160×46×11mm
hue
transparent
transparent
* The color is a reference sample. It may differ from the actual product.
remarks One-to-one
Card Holder 62 Type
Item No. 800384
Outer dimensions 190×117×9mm
hue
transparent
transparent
* The color is a reference sample. It may differ from the actual product.
remarks One-touch
Card Holder Type 72
Item No. 800394
Outer dimensions 47×40×9mm
remarks One-touch

Item No.	800311
Outer dimensions	160×47×10mm
hue	transparent transparent * The color is a reference sample. It may differ from the actual product.
remarks	One-touch

Item No.	800368
Outer dimensions	176×68×10mm
hue	transparent transparent * The color is a reference sample. It may differ from the actual product.
remarks	One-touch

Item No.	800373
Outer dimensions	160×46×11mm
hue	transparent transparent * The color is a reference sample. It may differ from the actual product.
remarks	One-to-one

Item No.	800384
Outer dimensions	190×117×9mm
hue	transparent transparent * The color is a reference sample. It may differ from the actual product.
remarks	One-touch
