Sanko Co.

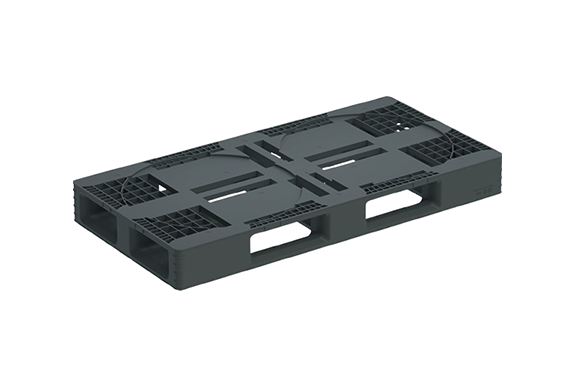

Sanko D4-714 Pallet
Manufacturer: Sanko Inc.
Model: D4-714.
Specifications
| Item No. | 810054 |
|---|---|

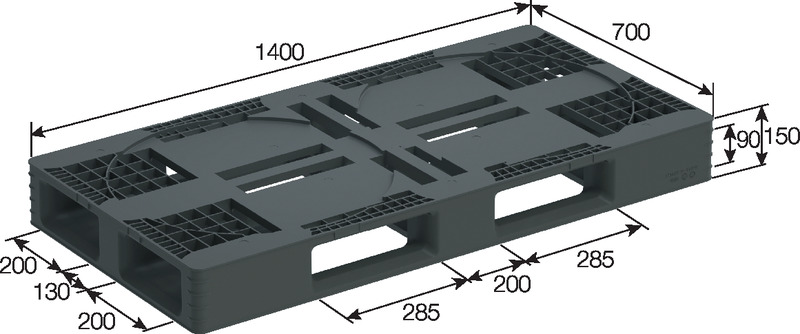

| Outer dimensions | 1400×700×150mm |
| hue | gray gray
|
| material | PP |
| weight | 15.2kg |
| Unit of Measure | 2
|
| Static load | 2000㎏ |
| Dynamic load | 500㎏※ |
| Usage examples | for drum conveying |
| remarks | * When taking measures to prevent cargo collapse, there are two recess shapes for preventing slippage of φ625×10 mm × deck surface. |

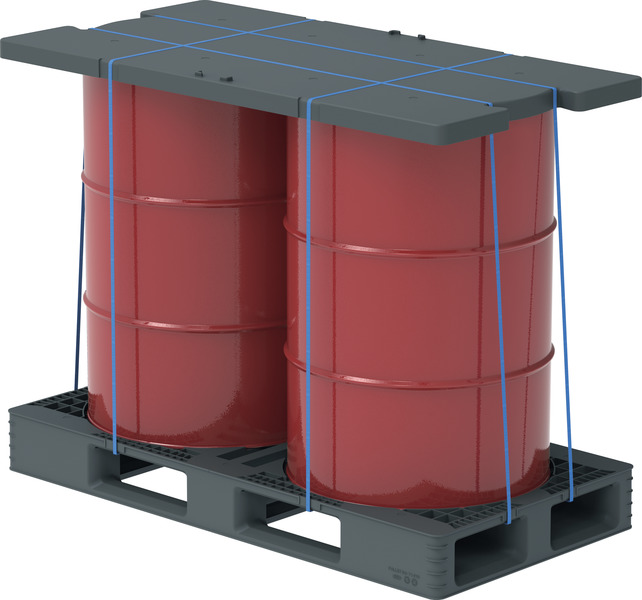

Both the pallet and the lid are equipped with a concave shape of ⌀625 mm (depth 10 mm) on the loading and receiving surfaces. In addition, grooves are installed in various places for banding the lid together, enabling stable transportation.

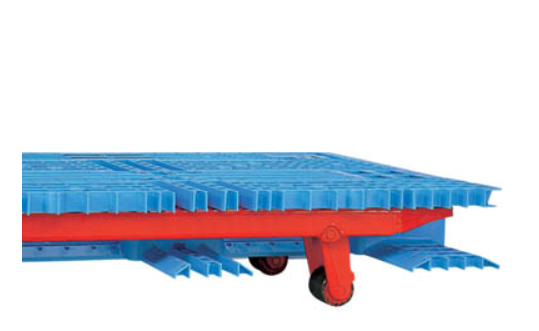

Hand Lift-Compatible Product
Type Mark Description
These pallets are compatible with transportation using a hand lift. Applicable types include “D type,” “S type,” and “SN type.” Hand lifts are easy to use and can be maneuvered even in narrow spaces. They allow for the easy transport of heavy loads placed on the pallet.
