Sanko Co.

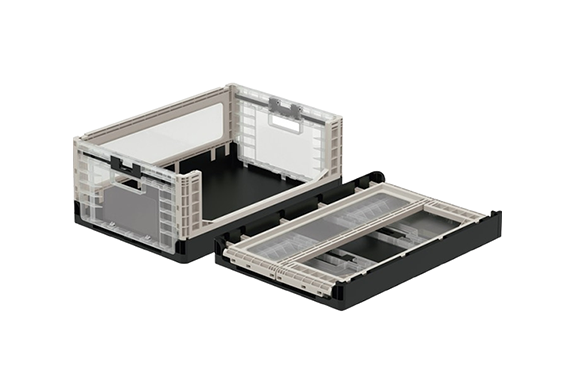

Sanko EP61B Madon Rack
Manufacturer: Sanko Inc.
Model: EP61B.

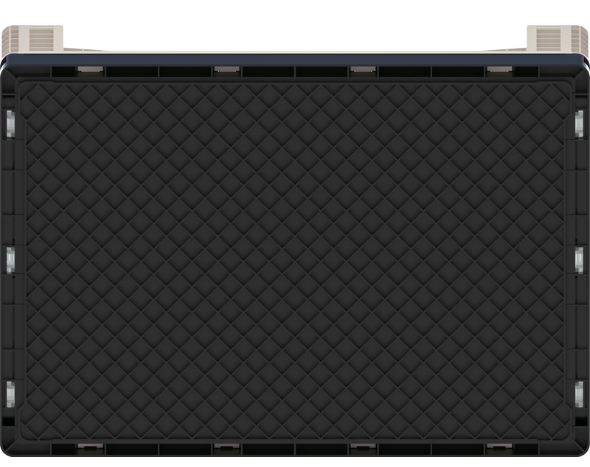

Bottom Shape
Specifications
| Item No. | 562650 |
|---|---|
| Outer dimensions | 649×439×262mm |
| Inner dimensions | 614×407×245mm |
| Effective inner dimensions | 613×406×237mm |
| hue | blacktransparentA Grey Black/Transparent/A Grey
|
| material | PP |
| Unit of Measure | 5
|
| Contents | 61.2L |
| Bottom shape |  Oblique lattice ribs |
| Special Mechanisms | Open type on one long side. With other side window |
| Usage examples | Racks for clothing picking |
| Overall height at Orita Tami | 77mm |
| Card Mounting Surface | Both short sides 21, 55, 56 type-A, 62, 72, 83, 84, 87, 99, 142-B, 162, 175-A |
| Mating Products |
|
| remarks | Aperture size: 509×162mm (154mm when stacked) |

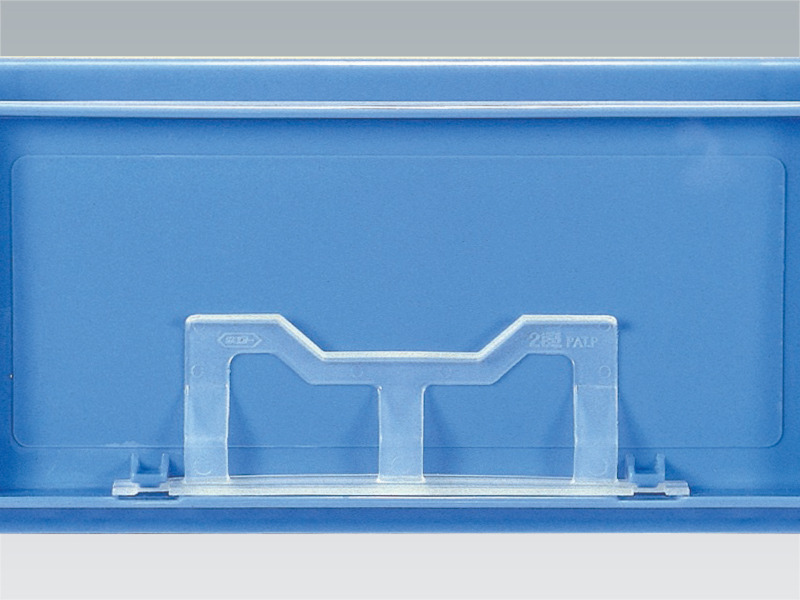

| Item No. | 800311 |
|---|---|
| Outer dimensions | 160×47×10mm |
| hue | transparent transparent
|
| remarks | one-touch |

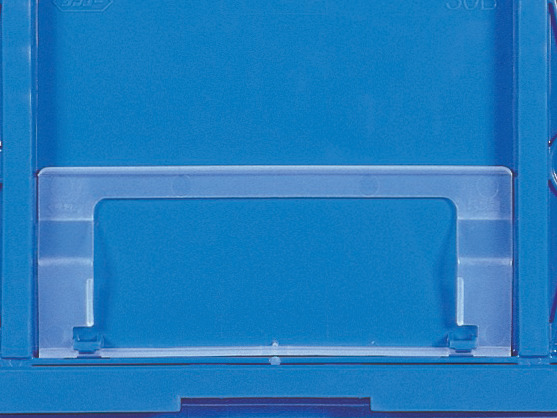

| Item No. | 800368 |
|---|---|
| Outer dimensions | 176×68×10mm |
| hue | transparent transparent
|
| remarks | one-touch |

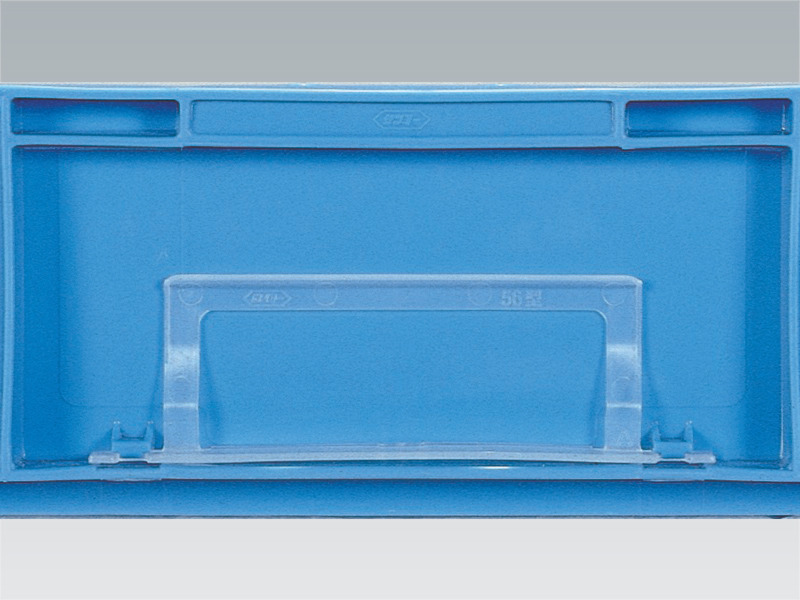

| Item No. | 800373 |
|---|---|
| Outer dimensions | 160×46×11mm |
| hue | transparent transparent
|
| remarks | one-touch |

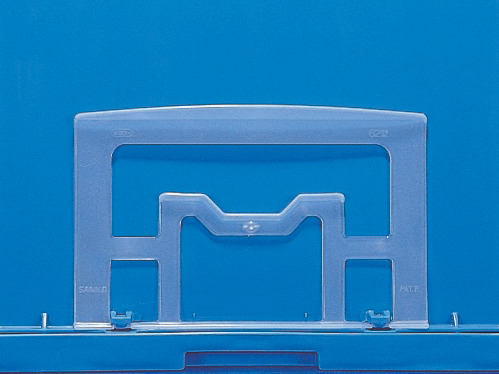

| Item No. | 800384 |
|---|---|
| Outer dimensions | 190×117×9mm |
| hue | transparent transparent
|
| remarks | one-touch |

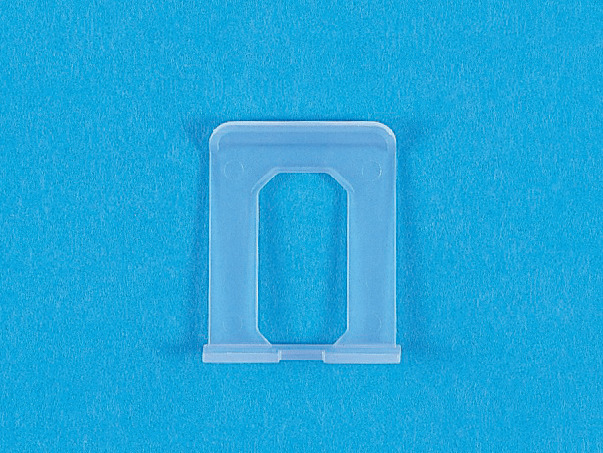

| Item No. | 800394 |
|---|---|
| Outer dimensions | 47×40×9mm |
| remarks | one-touch |
