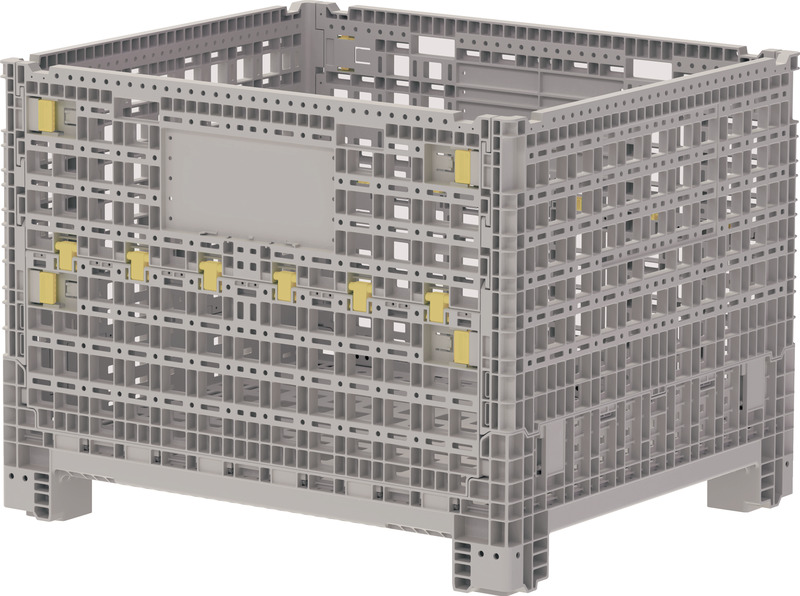

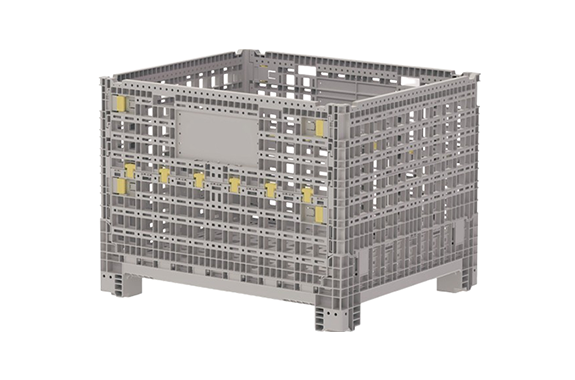

Sanko F#830B TL Comparletor

Manufacturer: Sanko Inc.
Model: F#830B TL.

Specifications

Item No.	803170
Outer dimensions	1200×1020×905mm
Inner dimensions	1150×960×750mm
Effective inner dimensions	1150×960×730mm
Compressive load	234.4 kN (23,909 kgf) (two-stage compression)
Load-bearing capacity	1000㎏
hue	A Grey A Grey ※The color is a reference sample. It may differ from the actual product.
material	Special Super Reinforced PP
weight	54.9kg
Unit of Measure	1 ※If you place an order less than the indicated quantity, you will be charged a separate freight charge.
Contents	828L
option	φ150 rubber caster / 2 wheels fixed / 2 wheels (with stopper), sun holder RF-P2, RF-P5
Overall height at Orita Tami	320mm

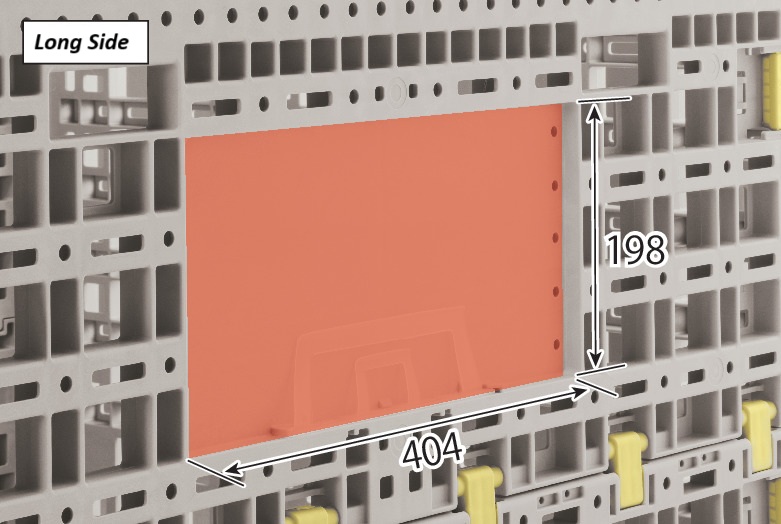

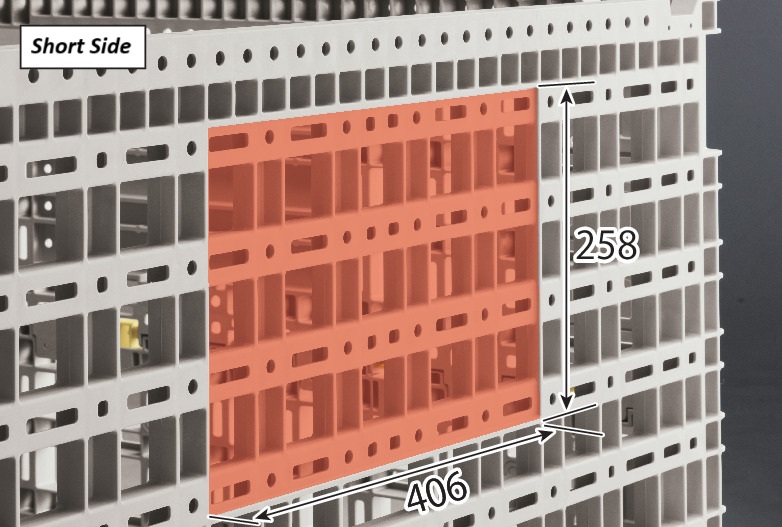

Card Mounting Surface	5, 52-2, 74, 94, 97, 102, 108, 122, 137, 156-A, 161, 165
Mating Products	TL Comparretor F#880B TL Comparator #430 TL Comparator F#830 TL Comparator F#830DB TL Comparator F#880 TL Comparletor F# 880DB

Hand Lift Compatible Product

Explanation of Type Mark

This is a pallet that can be transported using a hand lift. It applies to the “D type”, “S type”, and “SN type”. Hand lifts are easy to use manually and allow for smooth handling even in narrow spaces. A large volume of cargo loaded on the pallet can be easily transported.

RFID Tag Mountable

Explanation of Type Mark

This product allows for the attachment of RFID tags. It includes items that use RFID tag holders as well as those equipped with dedicated mechanisms for attaching RFID tags.

Logistics management using RFID, which enables individual item tracking, is expected to yield increasing benefits. Recognizing this, our company was quick to adopt RFID in the logistics materials industry. This technology is being rolled out not only in pallets but also in containers and carriers, contributing to the improvement of logistics efficiency.

Item No.	800202
Outer dimensions	214×65×13mm
hue	transparent transparent ※The color is a reference sample. It may differ from the actual product.
remarks	one-touch

Item No.	800262
Outer dimensions	214×60×13mm
hue	Milky Milky ※The color is a reference sample. It may differ from the actual product.
remarks	one-touch

Item No.	800396
Outer dimensions	214×75×13mm
remarks	one-touch

Item No.	800276
Outer dimensions	214×62×13mm
hue	transparent transparent ※The color is a reference sample. It may differ from the actual product.
remarks	one-touch

Item No.	800280
Outer dimensions	214×57×13mm
hue	transparent transparent ※The color is a reference sample. It may differ from the actual product.
remarks	one-touch
