Sanko Air Plant Ltd.

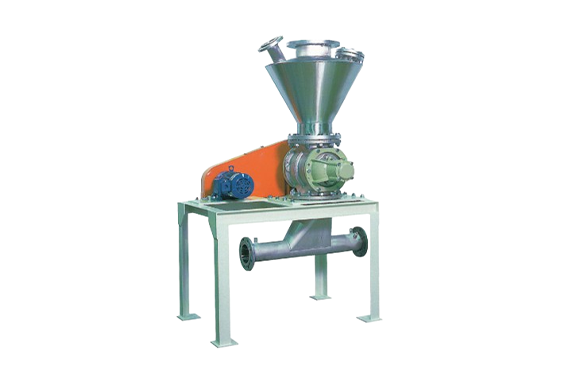

Sanko GR Unit Standard Type Unit
Manufacturer: Sanko Air Plant Ltd.
Model: GR Unit
Features
- “Standard seal” type of rotary feeder for maximum seal pressure 0.1MPa.
Specifications

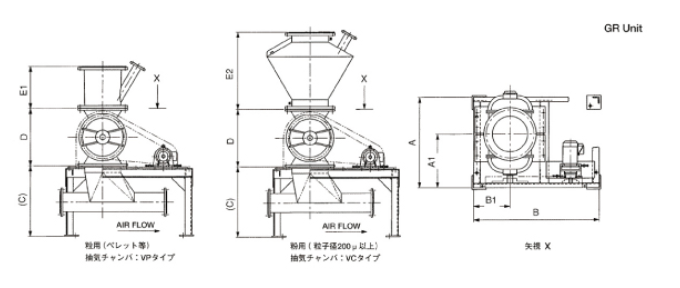

| Model | Diameter (Inch) | Motor Power (kW) | Max Capacity (m³/h) | Rotation Speed (rpm) | Dimensions (mm) | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | A1 | B | B1 | (C) | D | E1 | E2 | |||||
| GR30 Unit | 5 | 0.4 | 7.8 | 60 | 570 | 325 | 805 | 220 | (453) | 300 | 313 | – |
| GR50 Unit | 6 | 0.4 | 12 | 60 | 570 | 340 | 845 | 220 | (478) | 313 | 503 | – |
| GR70 Unit | 8 | 0.75 | 19 | 60 | 680 | 395 | 1020 | 270 | (573) | 353 | 513 | – |
| GR120 Unit | 10 | 0.75 | 36 | 60 | 730 | 430 | 1090 | 305 | (588) | 420 | 373 | 583 |
| GR220 Unit | 12 | 1.5 | 62 | 60 | 820 | 470 | 1300 | 355 | (633) | 490 | 413 | 663 |
| GR400 Unit | 14 | 2.2 | 121 | 60 | 960 | 580 | 1530 | 430 | (708) | 585 | 483 | 803 |
| GR600 Unit | 16 | 3.7 | 181 | 60 | 1080 | 645 | 1410 | 410 | (733) | 645 | 483 | 883 |
| GR800 Unit | 18 | 3.7 | 244 | 60 | 1140 | 700 | 1450 | 430 | (758) | 700 | 543 | 1023 |
