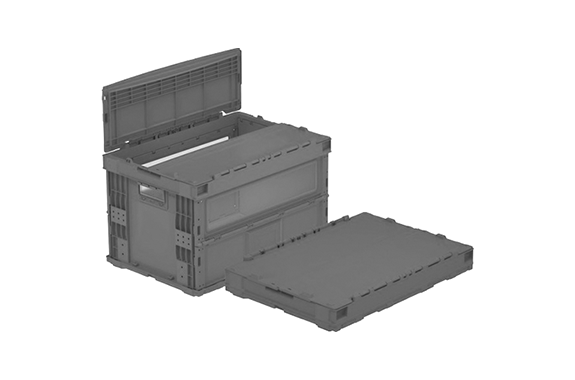

Sanko HBC-51B-E Madcon

Manufacturer: Sanko.
Model: HBC-51B-E.

Features

Bottom shape

Pallet Compatibility Diagram

Specifications

Item No.	562350
Outer dimensions	530×366×334mm
Inner dimensions	494×336×303mm
Effective inner dimensions	493×335×303mm
Compressive load	5.67kN(578kgf)
hue	bluetransparent Blue/Transparent ※The color is a reference sample. It may differ from the actual product.
material	PP
Contents	50L
Special Mechanisms	The lid has a mechanism to prevent rainwater intrusion and improve water drainage. Bottom drainage holes (φ7×4 places), With handle cover
Overall height at Orita Tami	78mm
Card Mounting Surface	Both short sides 21, 55, 56 type-A, 72, 83, 84, 87, 99, 142-B, 162, 175-A
Mating Products	Petanco Series Madocon HBC-51B-B Madocon HBC-51B-D Madocon HBO-51B Madocon HBC-41B Suncret Oricon HB-51B Sancret Oricon HB-31B Suncret Oricon 41A

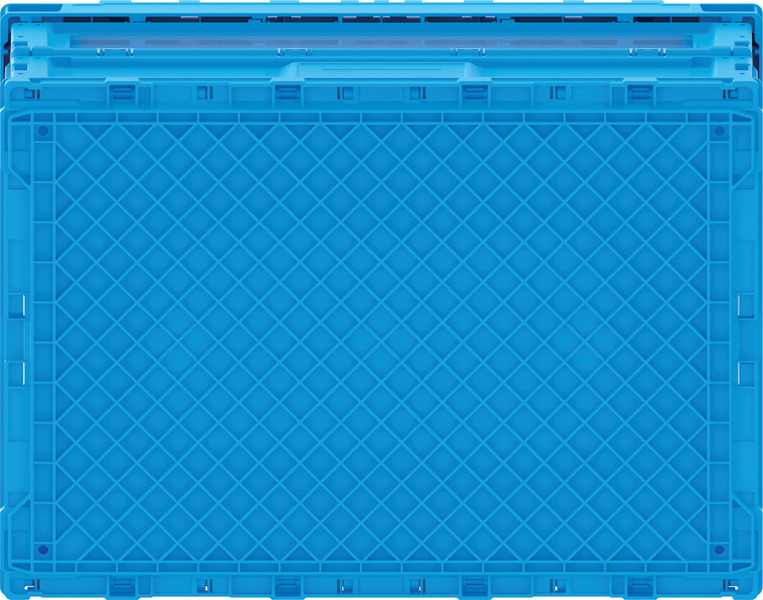

Slanted Grid Rib

Explanation of Bottom Shape

On the bottom surface, slanted grid-shaped ribs (vertical plate-shaped structures erected perpendicularly to reinforce the flat surface) are installed. This rib structure is particularly excellent in rollability (such as for rolling containers) and allows for smooth movement. Additionally, it is designed to suppress warping or twisting. Some models with drainage holes have 8 mm to 10 mm diameter drainage holes installed on the bottom. The number and location of the holes vary depending on the container.

The image is for illustrative purposes only. It may differ from the actual product. Please contact us if you need to confirm details.

Some models may have holes in certain areas of the bottom surface.
Some models may include lattice-shaped ribs on parts of the bottom.
Some models may have flat surfaces on parts of the bottom.

Card Holder 21 Type

Item No.	800311
Outer dimensions	160×47×10mm
hue	transparent transparent ※The color is a reference sample. It may differ from the actual product.
remarks	one-touch

Card holder 55 type

Item No.	800368
Outer dimensions	176×68×10mm
hue	transparent transparent ※The color is a reference sample. It may differ from the actual product.
remarks	one-touch

Card Insert 56-A

Item No.	800373
Outer dimensions	160×46×11mm
hue	transparent transparent ※The color is a reference sample. It may differ from the actual product.
remarks	one-touc

Card Holder Type 72

Item No.	800394
Outer dimensions	47×40×9mm
remarks	one-touch

Card Holder Type 83

Item No.	800259
Outer dimensions	160×50×11mm
hue	transparent transparent ※The color is a reference sample. It may differ from the actual product.
remarks	one-touch
