Sanko HXPlasticModule

Manufacturer: Sanko Inc.
Model: HX.

Features

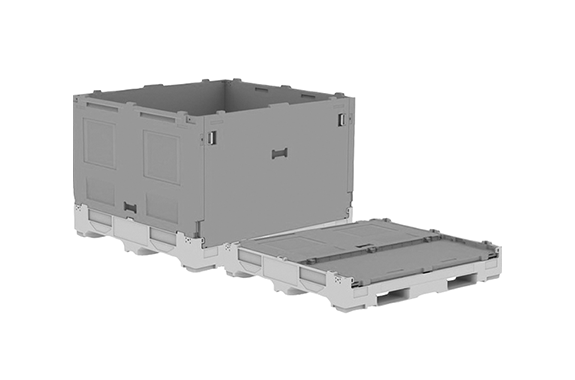

When collapsed

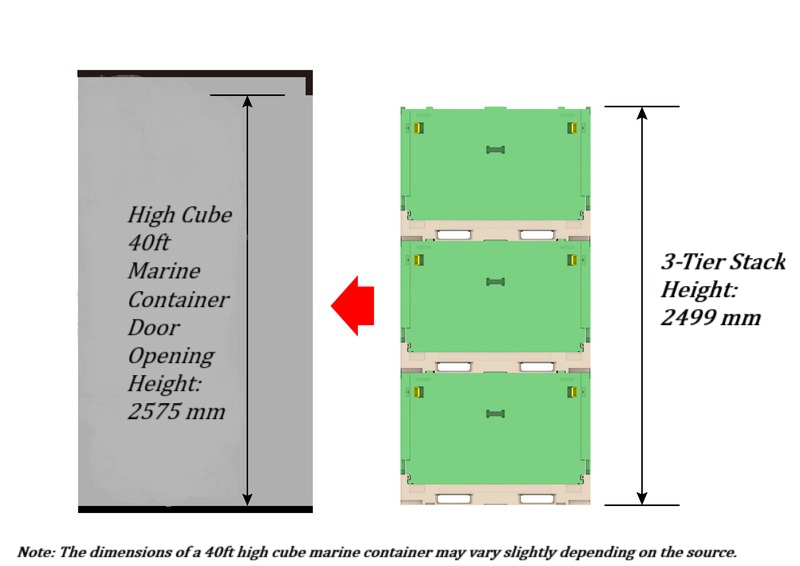

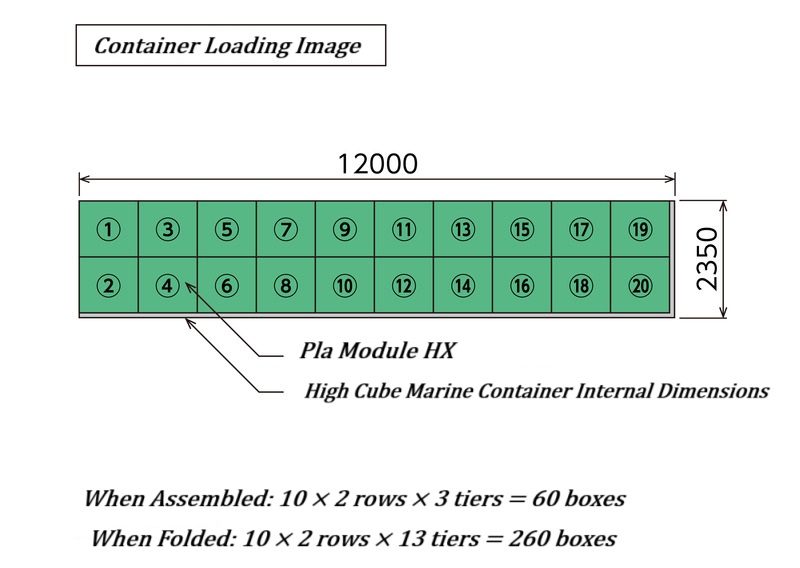

It is a size that makes effective use of the inner dimensions of the high-cube 40ft sea container, and can carry more cargo.

Specifications

Item No.	804430

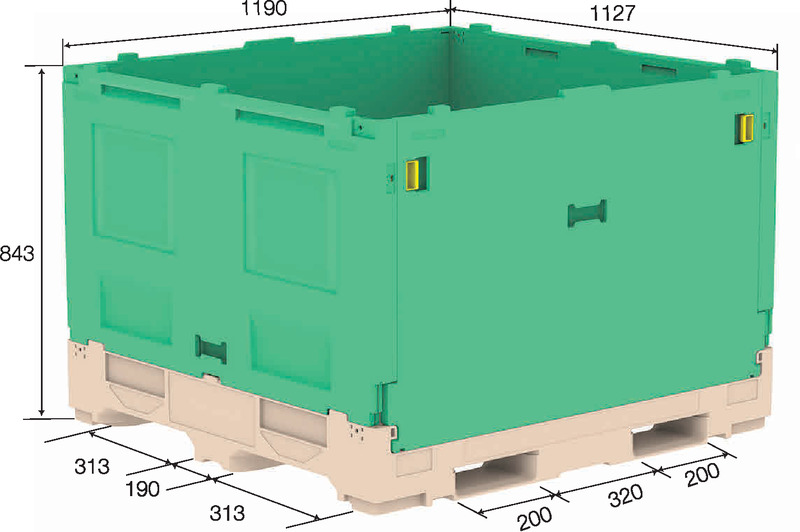

Outer dimensions	1190×1127×843mm
Inner dimensions	1130×1080×760mm
Effective inner dimensions	1130×1080×745mm
Compressive load	176.1 kN (17,960 kgf) (two-stage compression)
hue	greenbrown Green/Brown ※The color is a reference sample. It may differ from the actual product.
material	PP + Reinforcement (Steel)
weight	48.9kg
Unit of Measure	1 ※If you place an order less than the indicated quantity, you will be charged a separate freight charge.
Contents	928L
option	Lid (760423-01, 760424-01, 805849)

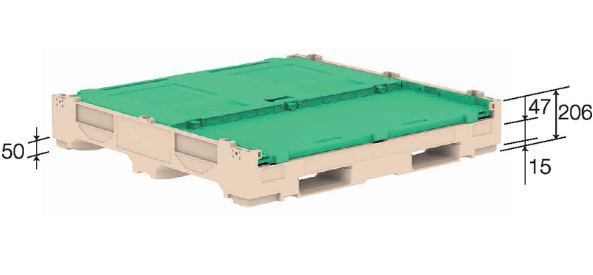

Overall height at Orita Tami	206mm
Lid-compatible products	EP Lid-Plastic Module X EP Lid-Plastic Module X Hard Plastic Module X Lid
Mating Products	Plastic Module X EP Lid-Plastic Module X EP Lid-Plastic Module X Hard
remarks	Bottom surface drainage hole (φ12×4 places) The inner dimension height includes mating protrusions

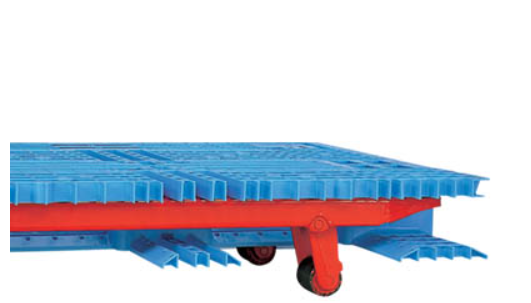

Compatible with Special Hand Lifts

Explanation of Type Mark

This mark is attached to pallets that require special attention when selecting due to their compatibility with hand lifts. The following conditions apply:

Fork insertion height is less than 87 mm
Inner width of fork gap is 210 mm or more
Potential restrictions when long-side and short-side fork insertion settings differ depending on the hand lift
