Manufacturer: Sanko Inc.

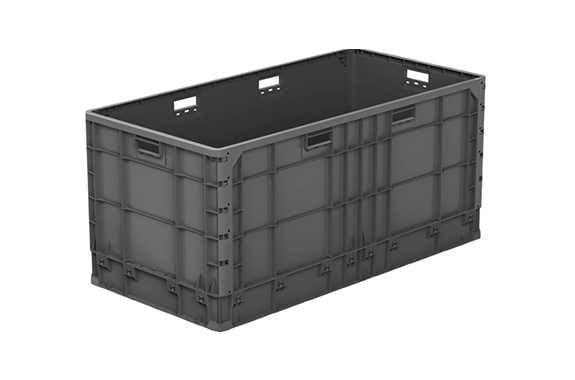

Model: J5115L.

Features

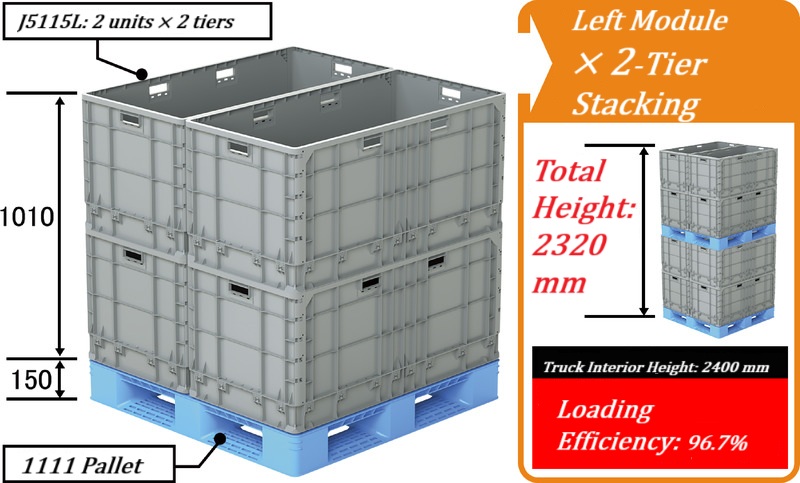

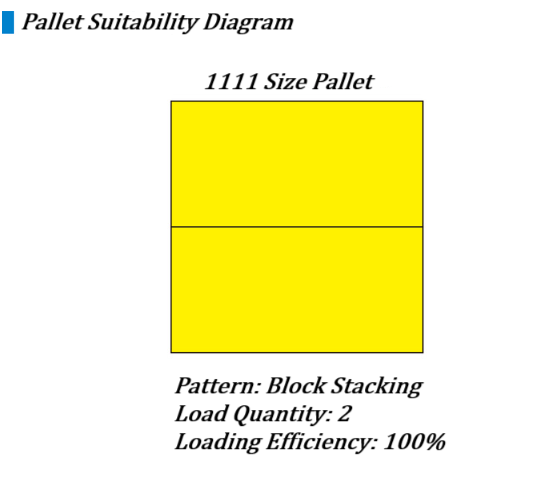

Perfect for 1100×1100 size pallets with 2 flat surfaces. Even in the height direction, it has excellent loading efficiency in the truck.

                                                                Bottom Shape

Specifications

                                                                  Grid Rib

Explanation of Bottom Surface Shape

• Grid-shaped ribs are installed on the bottom surface to reinforce the flat surface by standing vertically on that plane. The bending strength depends on the height of the ribs—the higher the ribs, the greater the strength. These are commonly used in industrial containers. Especially in industries that use oil, they help suppress swelling (a phenomenon where resin absorbs oil and increases in volume).
• Drain holes, usually 8–10 mm in diameter, may be installed in the bottom. The number and placement of the holes vary depending on the container.

                                                            Compatible with Handle Covers

Explanation of Type Mark

• • A handle cover can be installed over the grip holes in the container. The handle cover prevents the intrusion of dust or debris from the outside, keeping stored items clean. In addition, when storing small items inside the container, the cover prevents them from slipping out through the hand holes. Even with the handle cover installed, the handle can still be used. The cover is made of soft, flexible material, allowing your fingers to easily bend it inward. It can be used just like a standard handle. Once you remove your fingers, it returns to its original position.

                                                  Card holder 5-inch

Item No.	800202
Outer dimensions	214×65×13mm
hue	transparent transparent ※The color is a reference sample. It may differ from the actual product.
remarks	one-touch

                                           Card Slot 52-2

Item No.	800262
Outer dimensions	214×60×13mm
hue	Milky Milky ※The color is a reference sample. It may differ from the actual product.
remarks	one-touch

                                                             Card Holder Type 74

Item No.	800396
Outer dimensions	214×75×13mm
remarks	one-touch

                                                    Card Holder Type 94

Item No.	800276
Outer dimensions	214×62×13mm
hue	transparent transparent ※The color is a reference sample. It may differ from the actual product.
remarks	one-touch

                                                     Card holder 97 type

Item No.	800280
Outer dimensions	214×57×13mm
hue	transparent transparent ※The color is a reference sample. It may differ from the actual product.
remarks	one-touch
