Manufacturer: Sanko Inc.
Model: J565L.

Features

4 flat surfaces are loaded on a 1111 size pallet with pinwheel loading.

4 flat pieces are loaded on a 1012 size pallet in blocks.

Each part is detachable.

Specifications

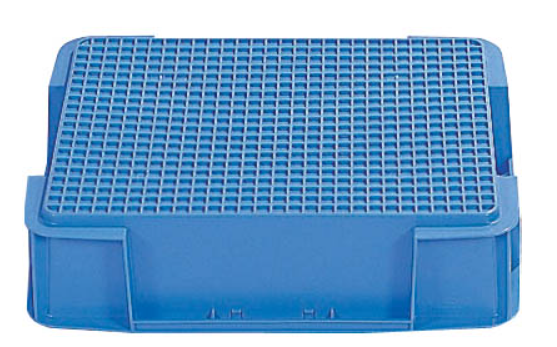

                                                              Grid Rib

Bottom Shape Explanation

• Grid-shaped ribs are added to the bottom surface to reinforce the flat area. These ribs are vertically aligned plate-like structures. The greater the rib height, the stronger the bending resistance and overall strength. This structure is widely used in industrial containers, especially in industries that use oil. It helps suppress deformation caused by swelling (a phenomenon where resin absorbs oil and increases in volume).
• Containers with drain holes typically have φ8 to φ10 mm holes on the bottom. The number and location of these holes vary by container.
•


                                                              Compatible with Handle Covers

  Explanation of Type Mark

  • A handle cover can be installed over the grip holes in the container. The handle cover prevents the intrusion of dust or debris from the outside, keeping stored items clean. In addition, when storing small items inside the container, the cover prevents them from slipping out through the hand holes. Even with the handle cover installed, the handle can still be used. The cover is made of soft, flexible material, allowing your fingers to easily bend it inward. It can be used just like a standard handle. Once you remove your fingers, it returns to its original position.
  •

                                                      Card holder 5-inch

    Item No.	800202
    Outer dimensions	214×65×13mm
    hue	transparent transparent * The color is a reference sample. It may differ from the actual product.
    remarks	One-touch



                                               Card Slot 52-2

    Item No.	800262
    Outer dimensions	214×60×13mm
    hue	Milky Milky * The color is a reference sample. It may differ from the actual product.
    remarks	One-touch



                                                                 Card Holder Type 74

    Item No.	800396
    Outer dimensions	214×75×13mm
    remarks	One-touch



                                                        Card Holder Type 94

    Item No.	800276
    Outer dimensions	214×62×13mm
    hue	transparent transparent * The color is a reference sample. It may differ from the actual product.
    remarks	One-touch



                                                         Card holder 97 type

    Item No.	800280
    Outer dimensions	214×57×13mm
    hue	transparent transparent * The color is a reference sample. It may differ from the actual product.
    remarks	One-touch
