Sanko Co.

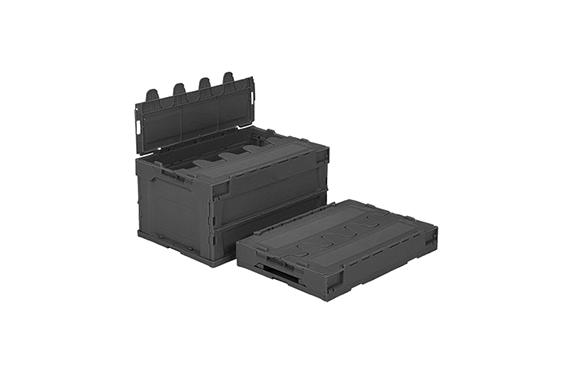

Sanko L41B Sancret Oricon
Manufacturer: Sanko Inc.
Model: L41B.
Features
Bottom Shape
Pallet Compatibility Diagram
Specifications
| Item No. | 553530 |
|---|---|
| Outer dimensions | 530×366×281mm |
| Inner dimensions | 494×336×252mm |
| Effective inner dimensions | 493×335×252mm |
| Compressive load | 9.88kN(1008kgf) |
| hue | light blue light blue yellow yellow
|
| material | PP |
| Unit of Measure | 5
|
| Contents | 41.6L |
| option | Sun Zipper Type 5 |
| Special Mechanisms | There is a grain surface for label peeling on both long and short sides and the lid, there is a rib for label peeling on one side of the corner of the short side of the upper frame, and the lid can be sealed with an insullock and the short side can be fixed. |
| Overall height at Orita Tami | 95mm |
| Card Mounting Surface | Both short sides 21, 55, 56 type-A, 62, 72, 83, 84, 87, 99, 142-B, 162, 175-A |
| Mating Products |
|
| remarks | * Transparent side type is also available. The compressive load is different from that of ordinary products. |
Slanted Grid Rib
Explanation of Bottom Shape
- On the bottom surface, slanted grid-shaped ribs (vertical plate-shaped structures erected perpendicularly to reinforce the flat surface) are installed. This rib structure is particularly excellent in rollability (such as for rolling containers) and allows for smooth movement. Additionally, it is designed to suppress warping or twisting. Some models with drainage holes have 8 mm to 10 mm diameter drainage holes installed on the bottom. The number and location of the holes vary depending on the container.
- The image is for illustrative purposes only. It may differ from the actual product. Please contact us if you need to confirm details.
- Some models may have holes in certain areas of the bottom surface.
- Some models may include lattice-shaped ribs on parts of the bottom.
- Some models may have flat surfaces on parts of the bottom.
FOLDING CONTAINER
Type Mark Description
- “FOLDING = Foldable”
This is a container that can be folded. It refers to containers such as Oricon and Suncrate Oricon. When folded, the volume of the empty container is reduced, which helps save storage space and cut transportation costs. In addition to Oricon and Suncrate, there are also foldable types available in compactors.
All-Plastic Construction
Explanation of Type Mark
- This type of Ori-Con or Sankurett container does not use metal screws or shaft components. Because of this, there’s no need to separate metal parts during disposal when the container reaches the end of its life. Additionally, for customers who use metal detectors or foreign object inspection systems, the Ori-Con itself, which contains no metal parts, will not be detected by mistake as a foreign object.
Type Mark Explanation

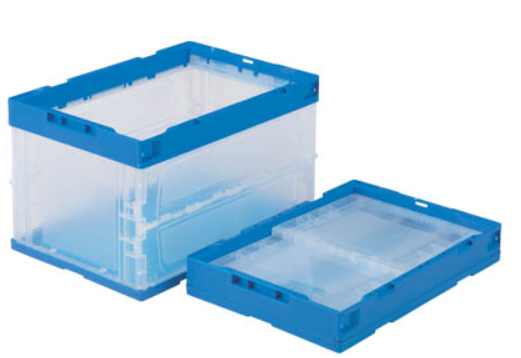

- Oricon and Suncrete Oricon also offer models with transparent side panels. Because the sides are transparent, the contents are clearly visible, and even when the boxes are stacked, you can easily check what’s inside without the need to unstack them.
Card Holder 21 Type
| Item No. | 800311 |
|---|---|
| Outer dimensions | 160×47×10mm |
| hue | transparent transparent
|
| remarks | One-touch |
Card holder 55 type
| Item No. | 800368 |
|---|---|
| Outer dimensions | 176×68×10mm |
| hue | transparent transparent
|
| remarks | One-touch |
Card Insert 56-A
| Item No. | 800373 |
|---|---|
| Outer dimensions | 160×46×11mm |
| hue | transparent transparent * The color is a reference sample. It may differ from the actual product. |
| remarks | One-to-one |
Card Holder 62 Type
| Item No. | 800384 |
|---|---|
| Outer dimensions | 190×117×9mm |
| hue | transparent transparent
|
| remarks | One-touch |
Card Holder Type 72
| Item No. | 800394 |
|---|---|
| Outer dimensions | 47×40×9mm |
| remarks | One-touch |
