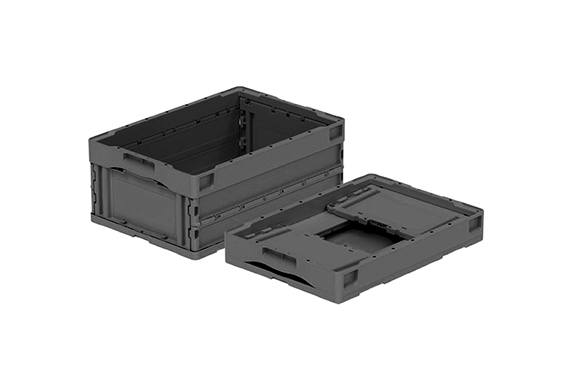

Sanko M30B Oricon

Manufacturer: Sanko Inc.
Model: M30B.

Features

オリコンM30B

  • The arched handle shape makes it easy to handle and fits in the hand.
  • The product in the image is the Sancret Oricon M39B.”

オリコンM30B

  • The sides have a simple design with few ribs, which prevents dust from accumulating and is easy to clean.
  • The product in the image is the Sancret Oricon M60B.

オリコンM30B

  • Grained surfaces are installed on four sides of the side and two short sides of the upper frame that make it easy to peel off labels.
  • The product in the image is the Oricon M50B.

  • オリコンM30B
  •                                                     Bottom Shape

  • Specifications

  • Item No.559870
    Outer dimensions530×366×221mm
    Inner dimensions494×336×210mm
    Effective inner dimensions493×335×201mm
    Compressive load12.00kN(1,220kgf)
    hue
    • The color is a reference sample. It may differ from the actual product.
    materialPP
    Unit of Measure5

    • If you place an order less than the indicated quantity, you will be charged a separate freight charge.
    Contents34.7L
    optionLid (701908)
    Special Mechanisms4 There is a grain surface for label peeling line on both sides and both ends of the upper frame on both short sides.
    Overall height at Orita Tami86mm
    Card Mounting Surface4 sides 21, 56 type-A, 72, 83 sides 55, 62, 84, 87, 99, 142-B, 162, 175-A
    Lid-compatible products
    • Oricon L51B lid
    Mating Products
    • Madocon 50B Series
    • Petanco Series
    • Oricon P51B Series

  •                                                     Slanted Grid Rib

    Explanation of Bottom Shape

    • On the bottom surface, slanted grid-shaped ribs (vertical plate-shaped structures erected perpendicularly to reinforce the flat surface) are installed. This rib structure is particularly excellent in rollability (such as for rolling containers) and allows for smooth movement. Additionally, it is designed to suppress warping or twisting. Some models with drainage holes have 8 mm to 10 mm diameter drainage holes installed on the bottom. The number and location of the holes vary depending on the container.
    • The image is for illustrative purposes only. It may differ from the actual product. Please contact us if you need to confirm details.
    • Some models may have holes in certain areas of the bottom surface.
    • Some models may include lattice-shaped ribs on parts of the bottom.
    • Some models may have flat surfaces on parts of the bottom.
  •                                                                     All-Plastic Construction

    Explanation of Type Mark

    • This type of Ori-Con or Sankurett container does not use metal screws or shaft components. Because of this, there’s no need to separate metal parts during disposal when the container reaches the end of its life. Additionally, for customers who use metal detectors or foreign object inspection systems, the Ori-Con itself, which contains no metal parts, will not be detected by mistake as a foreign object.

  •                                                                Card holder 55 type

    Item No.800368
    Outer dimensions176×68×10mm
    hue
    • *   The color is a reference sample. It may differ from the actual product.
    remarksOne-touch
Item No.800384
Outer dimensions190×117×9mm
hue
  • *  The color is a reference sample. It may differ from the actual product.
remarksOne-touch
Item No.800266
Outer dimensions160×85×9mm
hue
  • The color is a reference sample. It may differ from the actual product.
remarksone-touch
Item No.800269
Outer dimensions160×115×9mm
hue
  • The color is a reference sample. It may differ from the actual product.
remarksone-touch
Item No.800282
Outer dimensions160×93×9mm
hue
  • The color is a reference sample. It may differ from the actual product.
materialPP
remarksone-touch
