Sanko Co.
Sanko P30B-SL Sancret Oricon
Manufacturer: Sanko Inc.
Model: P30B-SL.
Features
Pallet Compatibility Diagram
Specifications
| Item No. | 558890 |
|---|---|
| Outer dimensions | 530×366×241mm |
| Inner dimensions | 492×334×205mm |
| Effective inner dimensions | 492×333×205mm |
| Compressive load | 9.51kN(970kgf) |
| hue | blue blue
|
| material | PP |
| Unit of Measure | 5
|
| Contents | 33.6L |

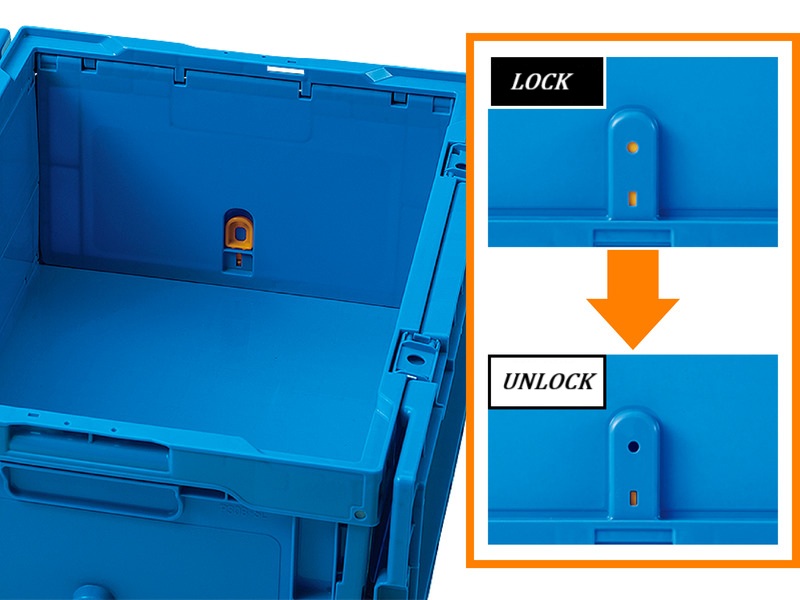

| Special Mechanisms | Both short sides of the upper frame, the upper surface of the lid, and both short sides have a grain surface for label peeling, Crime prevention measures with a slide lock installed in the lower center of the inner surface |
| Overall height at Orita Tami | 87mm |
| Mating Products |
|
| remarks | With Sun Lock * Oricon P31B, 51B, and 51B-B do not fit |
Slanted Grid Rib
Explanation of Bottom Shape
- On the bottom surface, slanted grid-shaped ribs (vertical plate-shaped structures erected perpendicularly to reinforce the flat surface) are installed. This rib structure is particularly excellent in rollability (such as for rolling containers) and allows for smooth movement. Additionally, it is designed to suppress warping or twisting. Some models with drainage holes have 8 mm to 10 mm diameter drainage holes installed on the bottom. The number and location of the holes vary depending on the container.
- The image is for illustrative purposes only. It may differ from the actual product. Please contact us if you need to confirm details.
- Some models may have holes in certain areas of the bottom surface.
- Some models may include lattice-shaped ribs on parts of the bottom.
- Some models may have flat surfaces on parts of the bottom.

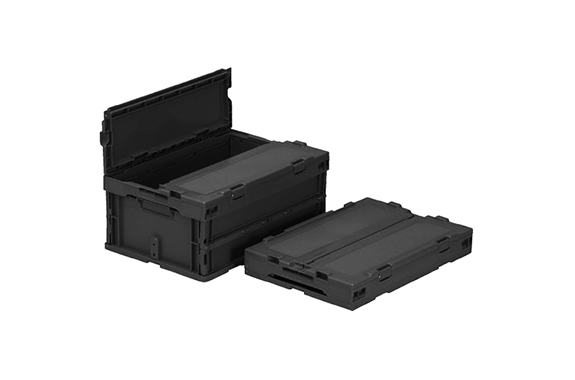

Foldable Container with Lid, Stackable by Lid
Explanation of Type Mark
This is a “Sankurett Ori-Con” type, a foldable container with an integrated lid. Like other Ori-Con containers, it can be folded to reduce storage space and shipping costs. Additionally, it allows for stacking with the lid on. Because the lid is integrated with the container body, it won’t detach due to vibrations or wind, and there’s no risk of loss. becomes difficult to remove contents, thus enhancing security.
All-Plastic Construction
Explanation of Type Mark
- This type of Ori-Con or Sankurett container does not use metal screws or shaft components. Because of this, there’s no need to separate metal parts during disposal when the container reaches the end of its life. Additionally, for customers who use metal detectors or foreign object inspection systems, the Ori-Con itself, which contains no metal parts, will not be detected by mistake as a foreign object.
