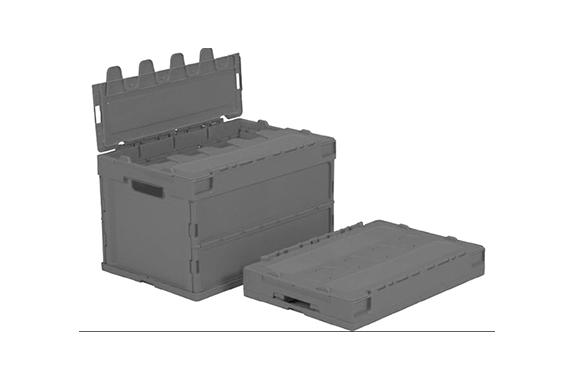

Sanko PG51B Sancret Oricon

Manufacturer: Sanko.
Model: PG51B.

Features

Sancret Oricon PG51B

With a middle partition groove that can divide the inner dimensions of the long side into 4 equal parts.

Sancret Oricon PG51B

With a middle partition groove that can divide the inner dimensions of the long side into 4 equal parts.

Sancret Oricon PG51B

                                                                   Bottom Shape

                                                         Pallet Compatibility Diagram

Specifications

Item No.559690
Outer dimensions530×366×334mm
Inner dimensions494×336×303mm
Effective inner dimensions493×335×303mm
Compressive load5.88kN(600kgf)
hue
  • The color is a reference sample. It may differ from the actual product.
materialPP
Unit of Measure5

  • If you place an order less than the indicated quantity, you will be charged a separate freight charge.
Contents50.0L
Special Mechanisms4 Grained surface for label peeling on the side and top of the lid
Overall height at Orita Tami95mm
Mating Products
  • Petanco Series
  • Oricon P51B Series
  • Sancret Oricon 51B Series
  • Oricon 51B
  • Oricon 51B (Transparent)
  • Oricon 51B-B (Transparent)
  • Oricon 51B-B
  • Oricon P31B
  • Oricon P31B (Transparent)

                                                    Slanted Grid Rib

Explanation of Bottom Shape

  • On the bottom surface, slanted grid-shaped ribs (vertical plate-shaped structures erected perpendicularly to reinforce the flat surface) are installed. This rib structure is particularly excellent in rollability (such as for rolling containers) and allows for smooth movement. Additionally, it is designed to suppress warping or twisting. Some models with drainage holes have 8 mm to 10 mm diameter drainage holes installed on the bottom. The number and location of the holes vary depending on the container.
  • The image is for illustrative purposes only. It may differ from the actual product. Please contact us if you need to confirm details.
  • Some models may have holes in certain areas of the bottom surface.
  • Some models may include lattice-shaped ribs on parts of the bottom.
  • Some models may have flat surfaces on parts of the bottom.

                                                                 Foldable Container with Lid, Stackable by Lid


Explanation of Type Mark

This is a “Sankurett Ori-Con” type, a foldable container with an integrated lid. Like other Ori-Con containers, it can be folded to reduce storage space and shipping costs. Additionally, it allows for stacking with the lid on. Because the lid is integrated with the container body, it won’t detach due to vibrations or wind, and there’s no risk of loss. The lid is designed with an interlocking wavy structure that closes tightly when shut. Even if the lid is deformed, it becomes difficult to remove contents, thus enhancing security.

                                                                    All-Plastic Construction

Explanation of Type Mark

This type of Ori-Con or Sankurett container does not use metal screws or shaft components. Because of this, there’s no need to separate metal parts during disposal when the container reaches the end of its life. Additionally, for customers who use metal detectors or foreign object inspection systems, the Ori-Con itself, which contains no metal parts, will not be detected by mistake as a foreign object.
