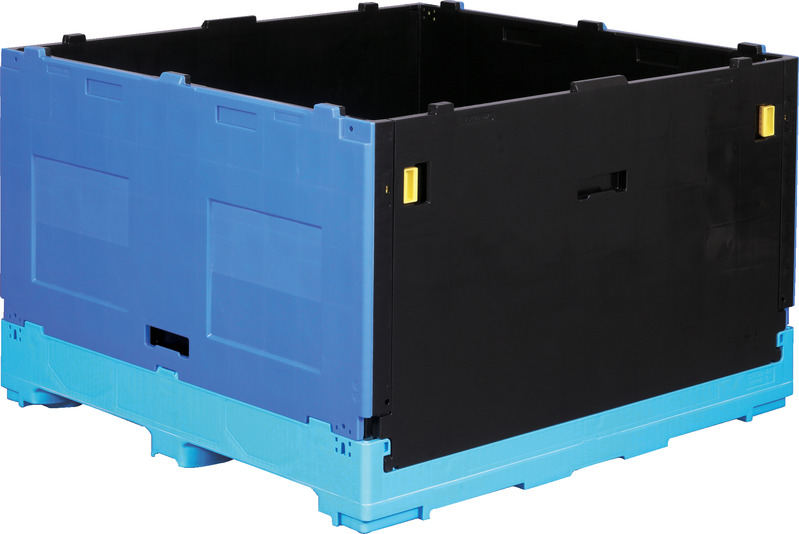

Sanko X Plastic Module

Manufacturer: Sanko Inc.
Model: X.

Features



                                                                  Assembly

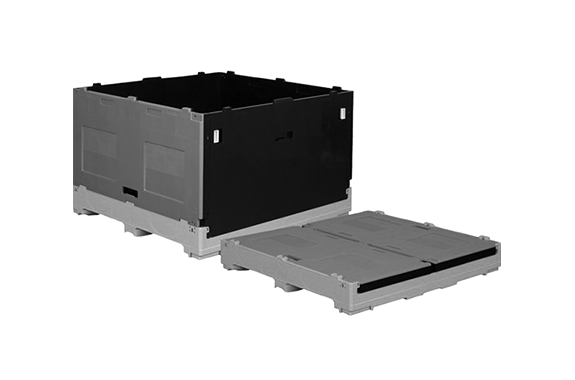

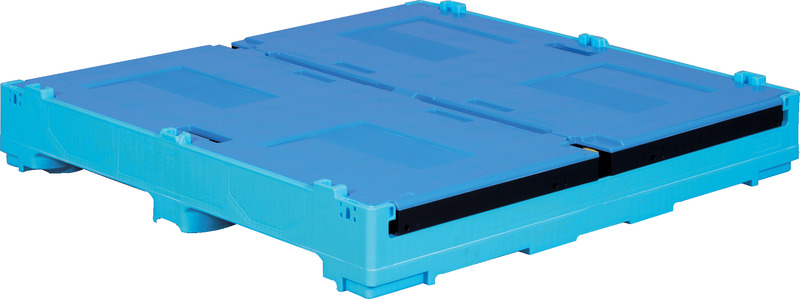

                                                                 Folding

Specifications

Item No.805840

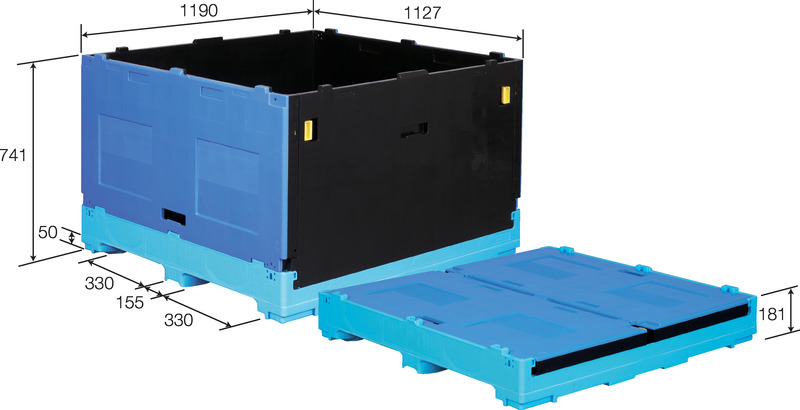

Outer dimensions1190×1127×741mm
Inner dimensions1130×1080×675mm
Effective inner dimensions1130×1080×660mm
Compressive load144.1kN(14700kgf)
hue
  • The color is a reference sample. It may differ from the actual product.
materialPP
weight39kg
Unit of Measure1

  • If you place an order less than the indicated quantity, you will be charged a separate freight charge.
Contents824L
optionLid (760423-01, 760424-01, 805849)
Overall height at Orita Tami181mm
Lid-compatible products
  • EP Lid-Plastic Module X
  • EP Lid-Plastic Module X Hard
  • Plastic Module X Lid
remarksTwo-way insertion with a forklift is possible. You can use an ultra-low floor type hand lift.

The inner dimension size includes mating protrusions

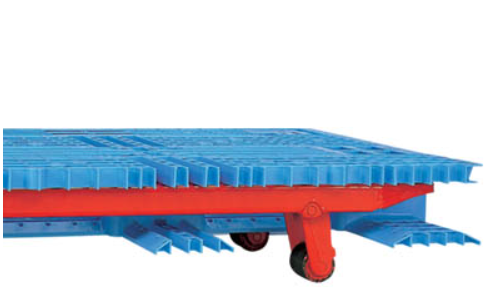

                                                               Compatible with Special Hand Lifts

Type Mark Explanation

This mark is applied to pallets that require special attention when selecting a pallet. It is attached to pallets that meet the following conditions:

  • Fork insertion opening height is less than 87 mm
  • Central rib width is 210 mm or more
  • Fork insertion settings differ on the long and short sides, possibly restricting hand lift use
