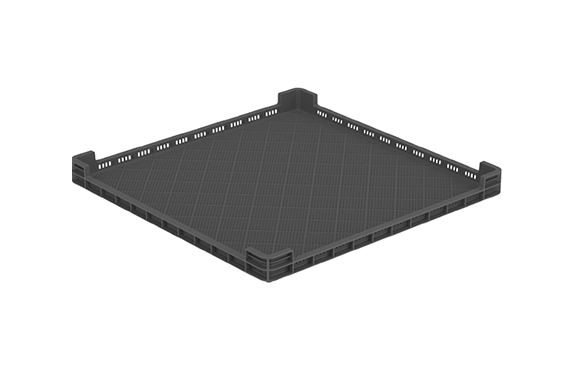

Sanko Seiro 17 Type

Manufacturer: Sanko Inc.
Model: Seiro 17.

Features

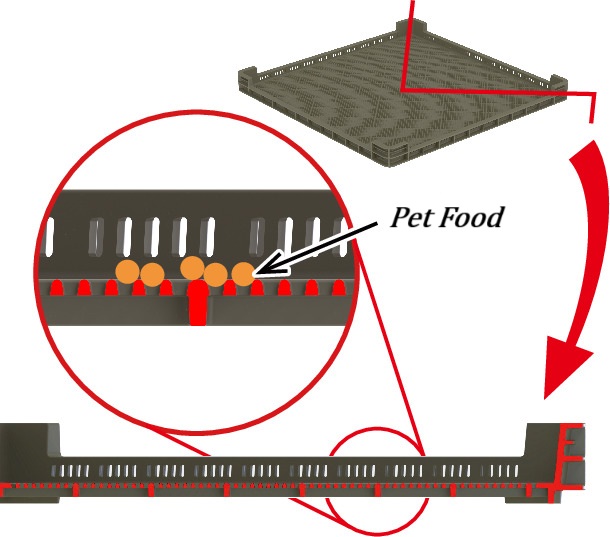

The tip of the bottom rib is R-shaped. This design prevents pet food from sticking during the manufacturing process.

Specifications

Item No.101180
Outer dimensions628×628×60mm
Inner dimensions602×602×45mm
Effective inner dimensions595×595×35mm
Compressive load16.0kN(1630kgf)
hue
  • The color is a reference sample. It may differ from the actual product.
materialPP
Unit of Measure5

  • If you place an order less than the indicated quantity, you will be charged a separate freight charge.
Contents16L
Amid-eye dimensionsSide 4×9mm Bottom 4×4mm

                                                          Diagonal Mesh Bottom

Explanation of Bottom Shape

  • The entire bottom surface is made of mesh, with diagonal ribs arranged across it. These ribs (which reinforce the flat surface) are structured as vertical plates standing perpendicular to the bottom. This construction is particularly effective for mobility on lines (such as roller conveyors), allowing for smooth movement. It also helps suppress twisting and distortion.
