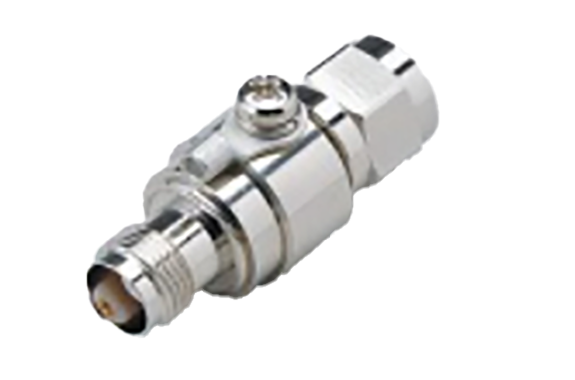

Sankosha TNC-JP-3 Coaxial Surge Protectors
Manufacturer: Sankosha., Inc
Model: TNC-JP-3
Features:
- High reliability protection from surges caused by lightning or other electrical transients
- High energy / low capacitance GDT technology
- Low insertion loss
- High frequency and bidirectional
- High durability and RoHS Compliant
Electrical Characteristics
| Item | Specification |
|---|---|
| Frequency Range | DC – 3GHz |
| DC Breakdown (Turn-On) (100V/s) | ≥ 120V |
| Voltage Protection Level – Uₚ (Impulse Breakdown V) | ≤ 900V |
| Technology Type | Gas Discharge Tube (GDT) |
| Insertion Loss | < 0.3dB |
| Return Loss | ≥ 14dB |
| VSWR | < 1.2:1 |
| Maximum Power | 10W |
| Maximum Current (8/20 μs) | 5kA (10 times), 10kA (1 time) |
| Maximum Current (10/350 μs) | 2.5kA (2 times) |
| Impedance | 50 Ω |
| Insulation Resistance (at 100VDC) | ≥ 100M Ω |

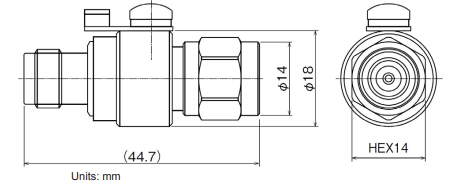

Mechanical Characteristics
| Item | Specification |
|---|---|
| Connector Type | TNC Type (P-J) |
| Connection Method | Series (Bidirectional) |
| Grounding | Screw |
| Weight | 46g (1.62oz) |
Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temperature Range | -20°C to +60°C (-4°F to 140°F) |
| Maximum Operating Altitude | 2000m (6562ft) |
| Relative Humidity | ≤ 90% |
Applications:
- Mobile Telephone Base Stations
- Wireless LAN Antennae
- Communication Devices
- Transmitters and Receivers
- Antenna Systems
- High Frequency Coaxial Lines using TNC-type Connectors
