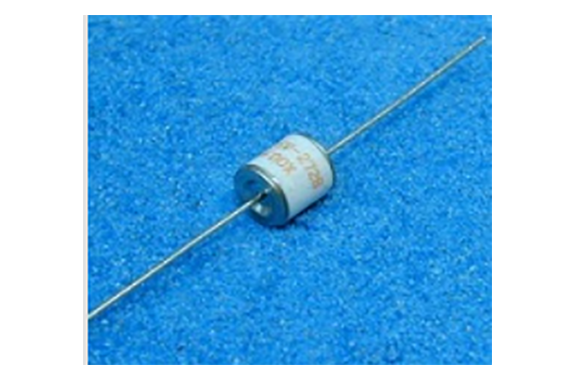

Sankosha Y08SV-Series Gas Discharge Tubes (GDT) – Surge Arresters

Manufacturer: Sankosha., Inc
Model: Y08SV-Series

Features:

Applications:

Part Number	DC Breakdown Voltage	Impulse Breakdown Voltage		Insulation Resistance⁽³⁾	Capacitance⁽⁴⁾	Impulse Life (8/20μs 100A)	Impulse Discharge Current (8/20μs)
Part Number	5kV/s	100V/μs	1kV/μs	Insulation Resistance⁽³⁾	Capacitance⁽⁴⁾	Impulse Life (8/20μs 100A)	1 Time	20 Times⁽⁵⁾
Y08SV-272B	2,430-3,000V	≤ 3,700V	≤ 3,900V	≥ 100 MΩ	≤ 1.0pF	300 Times	10 kA	3 kA
Y08SV-312B	2,850-3,500V		≤ 3,700V	≥ 100 MΩ	≤ 1.0pF	300 Times	10 kA	3 kA

Notes:

All Y08SV-Series part numbers meet the applicable requirements of the U.S. National Standard: UL 1449, Surge Protective Devices, Fourth Edition. (File E328370). All Y08SV-Series part numbers meet the applicable Canadian Requirements of CSA C22.2 No. 269.4-14, Surge protective devices – Type 4 – Component assemblies and/or CSA C22.2 No. 269.5-15, Surge protective devices – Type 5 – Components. Complies with IEC 60950-1, Edition 2.2, Annex Q/IEC62368-1 Annex G.8.2 and IEC 60065, Edition 7.2, Annex G.1.1
In series with an MOV, meets UL 6500 Second Edition requirements for suppression components connected between mains supply and accessible conductive parts.
Insulation Resistance for all parts in the Y08SV-Series is ≥ 100 MΩ measured at DC 1,000V
Capacitance measured at 1 MHz for all part numbers is ≤ 1.0 pF
10 times each polarity
