Manufacturer: Sankosha., Inc

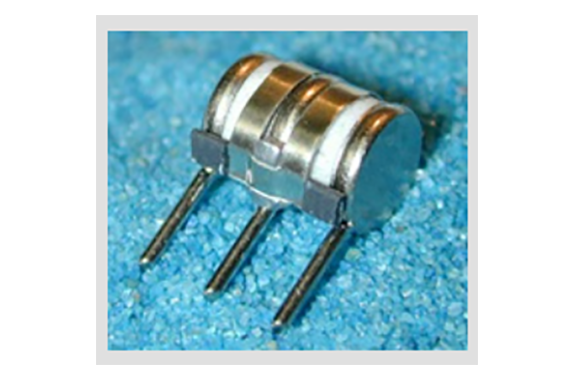

Model: 3J-Series

Features:

• UL 479B Recognized (File E140906)
• Non-Radioactive
• RoHS Compliant (100% Lead-Free)
• ISO 9001 and ISO 14001 Certified
• Low Capacitance ≤ 3.0pF⁽¹⁾
• High Insulation Resistance⁽²⁾

Applications:

• Cable Telephony Products
• Modems/Cable Modems
• Broadband/CATV/Coaxial Protectors
• xDSL Modems and Peripherals
• Building Entry/Outside Plant
• Transient Voltage Surge Suppression

Part Number (Model J1)	Part Number(3) (Model J1F2)	DC Breakdown Voltage(4) (L1-E)(L2-E)	Impulse Breakdown Voltage (L1-E)(L2-E)		DC Holdover Voltage(5)	Impulse Life (L1+L2-E) (10/1000μs 400A)	Impulse Discharge Current (L1+L2-E) (8/20μs)		AC Discharge Current (L1+L2-E) (50Hz)
		100V/s	100V/μs	1kV/μs			1 Time	10 Times(6)	9 Cycles 1 Time	1 Second
3J-1J1	3J-1J1F2	90V	≤ 700V	≤ 850V	≤ 52V	300 Times	20 kA	10 kA	130 A	10A, 10 Times
3J-2J1	3J-2J1F2	145V	≤ 700V	≤ 850V	≤ 52V	300 Times	20 kA	10 kA	130 A	10A, 10 Times
	3YVJ-200J1F2	200V	≤ 500V	≤ 650V	≤ 135V	300 Times	20 kA	10 kA	130 A	10A, 10 Times
3J-3J1	3J-3J1F2	230V	≤ 500V	≤ 650V	≤ 135V	300 Times	20 kA	10 kA	130 A	10A, 10 Times
3J-4J1	3J-4J1F2	250V	≤ 500V	≤ 650V	≤ 135V	300 Times	20 kA	10 kA	130 A	10A, 10 Times
3YVJ-260J1	3YVJ-260J1F2	260V	≤ 500V	≤ 650V	≤ 135V	300 Times	20 kA	10 kA	130 A	10A, 10 Times
3J-5J1	3J-5J1F2	300V	≤ 600V	≤ 750V	≤ 135V	300 Times	20 kA	10 kA	130 A	10A, 10 Times
3J-6J1	3J-6J1F2	350V	≤ 600V	≤ 750V	≤ 150V	300 Times	20 kA	10 kA	130 A	10A, 10 Times
3J-7J1	3J-7J1F2	400V	≤ 700V	≤ 850V	≤ 150V	400 Times(7)	20 kA	10 kA	130 A	10A, 10 Times
3YVJ-550J1	3YVJ-550J1F2	550V	≤ 850V	≤ 1000V	≤ 150V	300 Times	20 kA	10 kA	130 A	10A, 10 Times







Notes:

Capacitance measured at 1 MHz for all 3J-Series parts is ≤ 3.0 pF Insulation Resistance for all 3J-Series parts is ≥ 10,000 MΩ measured at: DC 50V for the 3J-1 and 3J-2 DC 100V for the 3YVJ-200, 3J-3, 3J-4, 3YVJ-260, 3J-5, 3J-6, 3J-7 and 3YVJ-550 Failsafe device available as model J1F2. DC Breakdown Voltage Ranges are: ± 20% for all 3J-Series parts except 3YVJ-200 ± 25% for 3YVJ-200 DC Holdover Voltage measured in accordance with the ITU-T K.12 or the IEEE C62.31-1987 Test Circuit 5 times each polarity Measured with 10/1000 µsec, 1000A impulse waveform 4.7 mm and 5.0 mm lead spacings are available on request.
