Sanshin

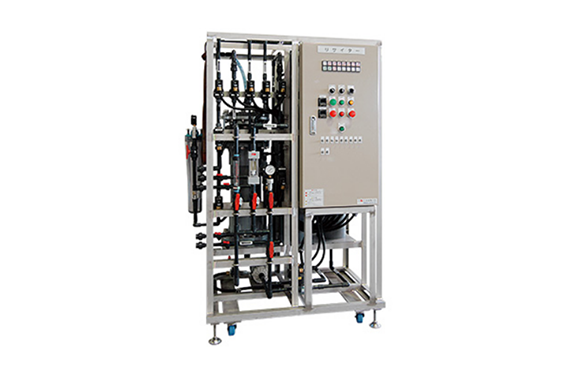

Sanshin Acid/metal Salt Separator

Manufacturer: Sanshin Manufacturing Co., Ltd
Reciter® is a device that separates metal salts from acid solutions containing metal salts using a special adsorption resin. Because water is used to regenerate the resin, no chemicals or energy such as heat are required. By using this device, it is possible to recover and reuse the effective free acid in waste acid.
Features
Stabilization of product quality: The metal concentration in the bath is stable, making bath management easier, which contributes to stabilizing product quality.
Acid saving: The acid treatment solution can be used continuously by adding more acid as it is consumed.
Cost reduction: By reducing the amount of free acid in waste liquid, it is possible to reduce the cost of disposing of waste acid.
Environmental measures: By reducing the total amount of nitric acid emissions, it contributes to nitrogen regulation measures and reduces the environmental impact.
Applications
Anodizing process
Pickling process
Chemical Polishing Process
Plating jig removal process
Etching solution
Standard Specifications
Model | W1SR-25 | W1SR-50 | W1SR-100 |
---|---|---|---|
Standard Processing Volume | ~12.5L/h | ~25L/h | ~50L/h |
Installation dimensions [width x length x height] | 650×400×1,000mm | 650×450×1,100mm | 500×1,150×2,050mm |
Operating Weight | 47kg | 53kg | 185kg |
Power supply | 0.1kW | 0.1kW | 0.5kW |
Wetted part material | PVC | PVC | PVC |
Model | W1SR-150 | W1SR-350 |
---|---|---|
Standard Processing Volume | ~75L/h | ~175L/h |
Installation dimensions [width x length x height] | 500×1,150×2,050mm | 1,250×700×2,100mm |
Operating Weight | 205kg | 335kg |
Power supply | 0.5kW | 0.5kW |
Wetted part material | PVC | PVC |
