Sanshin Type T Tubular Backwash Type Precision Filter

Manufacturer: Sanshin Manufacturing Co., Ltd
Model: Type T

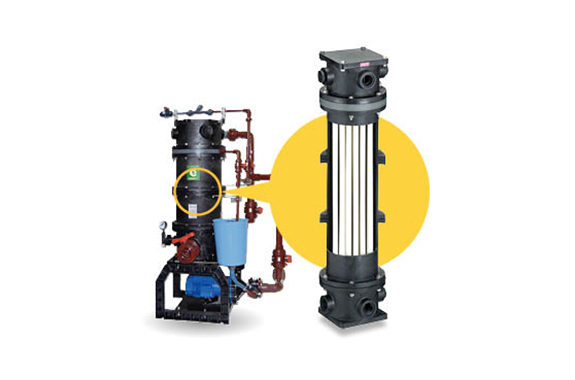

This backwash type precision filter uses a special tubular type T filter material that we developed ourselves to achieve highly accurate and stable filtration, cost reduction, and waste reduction.
Features
By using a special tubular-type T filter material, this system ensures stable filtration accuracy. The instant back-pressure cleaning method is not only simple to operate but also delivers an excellent cleaning effect on the filter media. Additionally, the long lifespan of the filter media helps minimize both operating and disposal costs. Furthermore, it significantly reduces the amount of filter aid required, and in some cases, depending on the type of liquid, filtration can be done without any auxiliary agents.
Standard Specifications
Model | EAX8-T | EAX12-T | EAX16-T |
---|---|---|---|
Filtration volume [clean water standard] | 4,000 to 9,000 L/h | 6,000 to 12,000 L/h | 10,000 to 15,000 L/h |
Filtration Area | 1.0m2 | 1.5m2 | 2.0m2 |
Pump Model | MX-400RE□-L2-3S | MX-400RE□-L2-3S | MX-401RE C-L2-3S1 |
Motor | Three-phase AC200V 0.4kW | Three-phase AC200V 0.4kW | Three-phase AC200V 0.75kW *1 |
External dimensions [width x depth x height] | 800×710×1,394mm | 833×710×1,530mm | 930×798×1,480mm |
Product weight | 50kg | 55kg | 98.5kg |
Body material/gasket material | PPGF/PP・EPDM | PPGF/PP・EPDM | PPGF/PP・EPDM |
Filter material | PP | PP | PP |
Entrance/Exit Connection | 40A/40A | 40A/40A | 40A/40A |
Drain Connection | 40A | 40A | 50A |
Backwash air connection | 15A | 15A | 15A |
Model | EAX24-T |
---|---|
Filtration volume [clean water standard] | 10,000 to 19,000 L/h |
Filtration Area | 3.0m2 |
Pump Model | MX-402RE C-L2-3S1 |
Motor | Three-phase AC200V 1.5kW *1 |
External dimensions [width x depth x height] | 947×851×1,605mm |
Product weight | 123kg |
Body material/gasket material | PPGF/PP・EPDM |
Filter material | PP |
Entrance/Exit Connection | 50A/50A |
Drain Connection | 50A |
Backwash air connection | 15A |
PPGF: Glass fiber reinforced polypropylene PP: Polypropylene EPDM: Ethylene propylene rubber *1: Outdoor
