Sanwa Electric Instrument Co., Ltd.

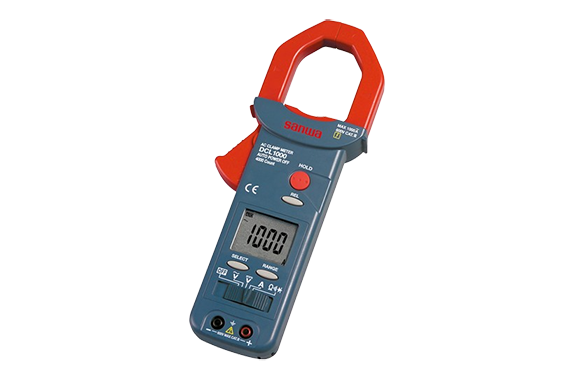

Sanwa DCL1000 Clamp Meters
Manufacturer: Sanwa Electric Instrument Co., Ltd
Model: DCL1000
Features
Large diameter CT, AC current measurable max. 1000A
Lightweight approx. 290g
Large LCD
Easy to use large size data hold button
Specifications
| Function | Measuring range | Best accuracy | Resolution |
|---|---|---|---|
| ACA | 400/1000A | ±(1.7%+5) | 0.1A |
| DCV | 400m/4/40/400/600V | ±(1.2%+3) | 0.1mV |
| ACV | 400m/4/40/400/600V | ±(2.2%+5) | 0.1mV |
| Resistance | 400/4k/40k/400k/4M/40MΩ | ±(1.2%+4) | 0.1Ω |
| Continuity | Buzzer sounds at between 0Ω and 65Ω(±35Ω) Open voltage: approx. 0.4V | ||
| Diode test | Open voltage: approx. 1.6V | ||
| Sampling rate | 3 times/sec. |
| Bandwidth | ACA 50/60Hz (sine wave) ACV 50-500Hz (sine wave) |
| Display | 4000 |

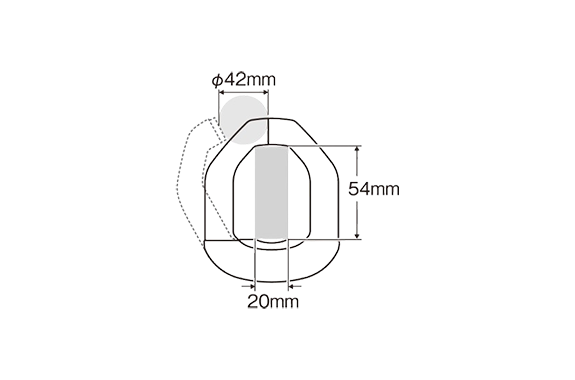

| Clamp diameter/Conductor size | Φ42mm/20×54mm |
| Battery | R03×2 |
| Battery life | Approx. 120 hrs. at DCV (Zinc-carbon battery) |
| Size/Mass | H238×W95×D45mm/Approx.290g |
| Safety standards | IEC61010 CAT.Ⅲ600V |
