Sanwa Electric Instrument Co., Ltd.

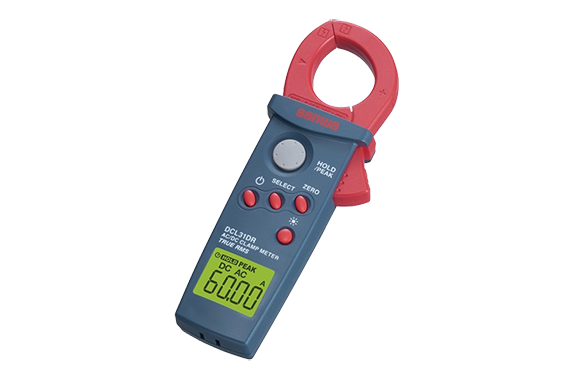

Sanwa DCL31DR Clamp Meters
Manufacturer: Sanwa Electric Instrument Co., Ltd
Model: DCL31DR
Features
DC/AC RMS mini clamp meter with peak hold function
Compact pocket size
Auto power off (15min./Cancelable)
Specifications
| Function | Measuring range | Best accuracy | Resolution |
|---|---|---|---|
| DCA | 60/400A | ±(2.0%+5) | 0.01A |
| ACA | 60/400A | ±(2.0%+5) | 0.01A |
| Sampling rate | 2 times/sec. |
| Bandwidth | 45-400Hz |
| Display | 6000 |

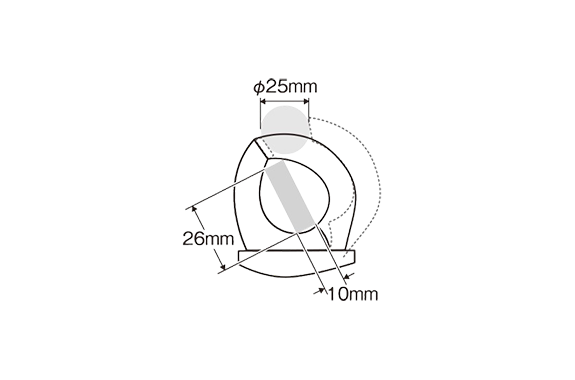

| Clamp diameter/Conductor size | 25mm/10×26mm |
| Battery | LR03×2 |
| Battery life | Approx. 35 hrs. |
| Size/Mass | H145×W54×D31mm/Approx. 120g |
| Safety standards | IEC61010 CAT.Ⅲ300V |
In the peak hold mode, the measuring range is fixed at 400A
