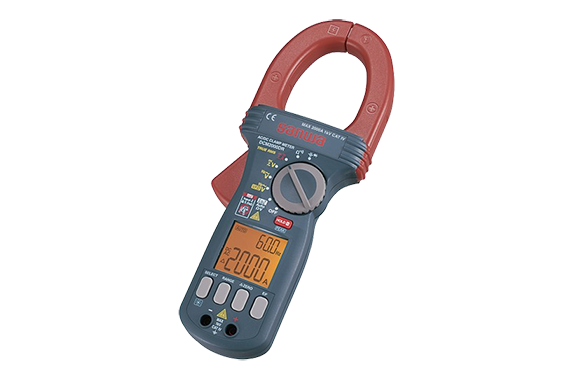

Sanwa DCM2000DR Clamp Meters
Manufacturer: Sanwa Electric Instrument Co., Ltd
Model: DCM2000DR
Features
DC/AC current measurable max. 2000A, CAT.IV 1000V
Dual display shows voltage/current and its frequency
EF (Electric Field) detection
VFD (Variable Frequency Drive) frequency measurement
Low input impedance voltage measurement capable of attenuating the effects of ghost voltages
Peak hold (Interval: 5 ms)
Auto power save (30 min./Cancelable)
Specifications
| Function | Measuring range | Best accuracy | Resolution |
|---|---|---|---|
| ACA | 200.0/2000A | ±(2.0%+5) | 0.1A |
| DCA | 200.0/2000A | ±(2.0%+5) | 0.1A |
| ACV | 6.000/60.00/600.0/1000V | ±(1.2%+5) | 0.001V |
| DCV | 6.000/60.00/600.0/1000V | ±(0.5%+5) | 0.001V |
| Resistance | 600.0/6.000k/60.00k/600.0k/6.000M/40.00MΩ | ±(0.5%+5) | 0.1Ω |
| Frequency | 10～1999Hz | ±(0.1%+4) | 0.01Hz |
| Capacitance | 60n/600n/6μ/60μ/600μ/2000μF | ±(2.0%+5) | 0.01nF |
| Continuity | Buzzer sounds at below 10-200Ω Open voltage: approx. 0.5V | ||
| Diode test | Open voltage: approx. 1.8V | ||
| EF sensing | A voltage or electric field of about 60 V or more is detected. The bar graph and intermittent buzzer beeps change in three steps according to the field intensity. (50/60Hz) | ||
| Sampling rate | Approx. 5 times/sec. |
| Bandwidth | 50～400Hz |
| Display | 6000/1999（Hz) |
| Max. overload protection input | DC/AC1100V CT: DC/AC2000A |

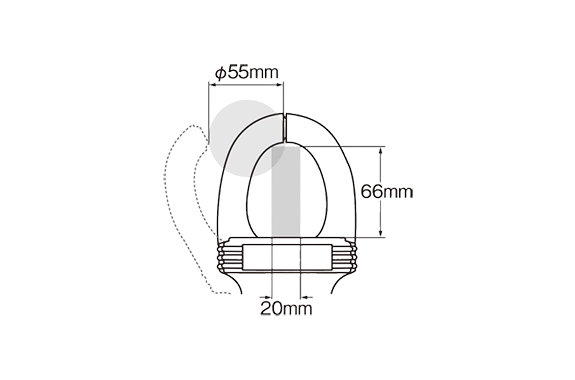

| Clamp diameter/Conductor size | Φ55mm/20x66mm |
| Battery | R6Px2 |
| Battery life | A function: Approx. 80 hrs. Functions other than A: Approx. 240 hrs. (Zinc-carbon battery/Backlight off) |
| Size/Mass | H264×W97×D43mm/Approx. 640g |
| Safety standards | IEC61010 CAT.Ⅳ1000V |
