Sanwa Electric Instrument Co., Ltd.

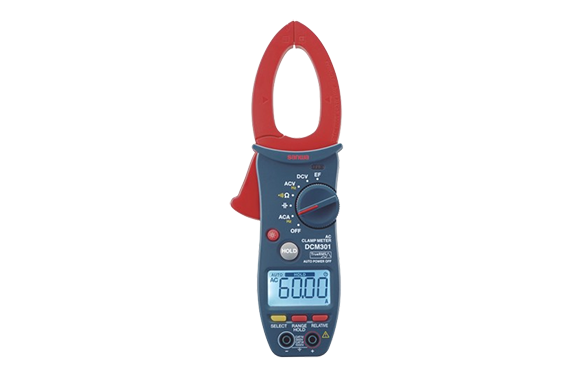

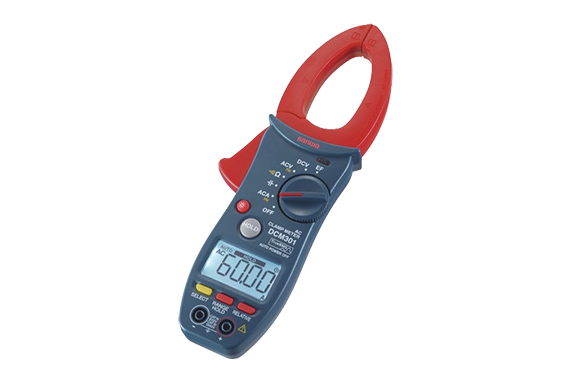

Sanwa DCM301 Clamp Meters
Manufacturer: Sanwa Electric Instrument Co., Ltd
Model:DCM301
Features
CAT.IV, AC current measurable max. 1000A
The CT shape makes it easier to clamp cable in crowded.
An electric field (EF) function is incorporated in the tip of the CT to enable detection of about AC 90V or more.
Large, easy-to -press HOLD button.
Equipped with LED light to illuminate the measurement target.
Specifications
| Function | Measuring range | Best accuracy | Resolution |
|---|---|---|---|
| ACA | 60.00/600.0/1000A | ±(2.5%+5) | 0.01A |
| ACV | 6.000/60.00/600.0/1000V | ±(1.5%+3) | 0.001V |
| DCV | 6.000/60.00/600.0/1000V | ±(1%+3) | 0.001V |
| Resistance | 6.000k/60.00k/600.0k/6.000M/60.00MΩ | ±(2%+5) | 0.001kΩ |
| Frequency | ACV 10Hz-10kHz, ACA 10Hz-2kHz | ±(1%+5) | 0.1Hz |
| Capacitance | 60.00n/600.0n/6.000µ/60.00µ/600.0µ/6.000m/60.00mF | ±(4%+3) | 0.01nF |
| Continuity | Buzzer sounds below 30Ω Open voltage: approx. 1V or less | ||
| Detection of Electricity | Buzzer sounds, “-” is shown on LCD, and LED flickers Detects ACV and EF of approx. 90V or more (50/60Hz) | ||
| Sampling rate | Approx. 3 times/sec. |
| Bandwidth | ACA 45-400Hz ACV 45Hz-1kHz |
| Display | 6000/9999(Hz function) |
| Clamp diameter/Conductor size | Φ34mm/10×64mm |
| Battery | LR03×3 |
| Battery life | Approx. 200 hrs. |
| Size/Mass | H252×W85×D40mm/Approx. 360g |
| Safety standards | IEC61010 CAT.Ⅳ600V/CAT.Ⅲ1000V |
