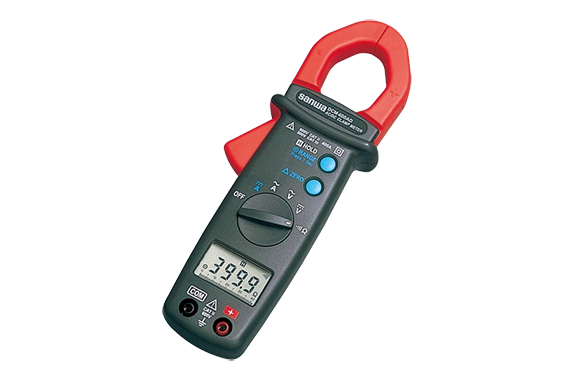

Sanwa DCM400AD Clamp Meters
Manufacturer: Sanwa Electric Instrument Co., Ltd
Model: DCM400AD
Features
Suitable for automotive maintenance & DMM functions
4000 counts, 42 segments analog bar graph
Auto power off (30 min.)
Low battery power indication
Specifications
| Function | Measuring range | Best accuracy | Resolution |
|---|---|---|---|
| ACA | 40/400A | ±(2%±10) | 0.01A |
| DCA | 40/400A | ±(2.5%±10) | 0.01A |
| ACV | 400/600V | ±(1.5%±5) | 0.1V |
| DCV | 400/600V | ±(1%±2) | 0.1V |
| Resistance | 400Ω | ±(1%±2) | 0.1Ω |
| Continuity | Buzzer sounds at less than approx. 40Ω Open voltage: approx. 1.5V | ||
| Sampling rate | 2 times/sec., 20 times/sec. for bar graph |
| Bandwidth | 50～500Hz |
| Display | 4000 |

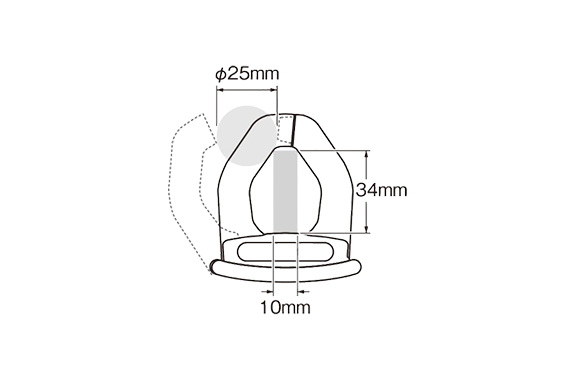

| Clamp diameter/Conductor size | Φ25mm/10×34mm |
| Battery | LR03×2 |
| Battery life | Approx. 50 hrs.（Alkaline battery) |
| Size/Mass | H193×W50×D28mm/Approx. 230g |
| Safety standards | IEC61010 CAT.Ⅲ300V CAT.Ⅱ600V |
