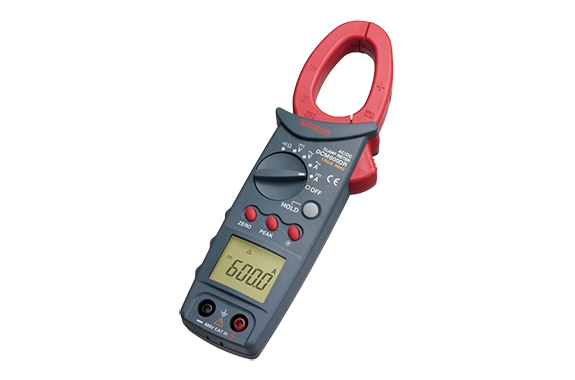

Sanwa DCM600DR Clamp Meters
Manufacturer: Sanwa Electric Instrument Co., Ltd
Model: DCM600DR
Features
Suitable for maintenance of vehicle, hybrid vehicle, EV & DMM functions
AC/DC current measurable max. 600A
Peak hold (Interval: 1ms)
Auto power save (30min./Cancelable)
AC/DC current measurable max. 600A
Peak hold (Interval: 1ms)
Auto power save (30min./Cancelable)
Specifications
| Function | Measuring range | Best accuracy | Resolution | Input impedance |
|---|---|---|---|---|
| DCA | 60/600A | ±(2%+5) | 0.01A | |
| ACA | 60/600A | ±(2%+5) | 0.01A | |
| DCV | 600V | ±(1%+2) | 0.1V | 1MΩ |
| ACV | 600V | ±(1.2%+5) | 0.1V | |
| Resistance | 999.9Ω | ±(1%+7) | 0.1Ω | |
| Continuity | Buzzer sounds at less than 40Ω Open voltage: approx. 2.9V | |||
| Sampling rate | 3 times/sec. |
| Bandwidth | 50-500Hz |
| Display | 6000 |

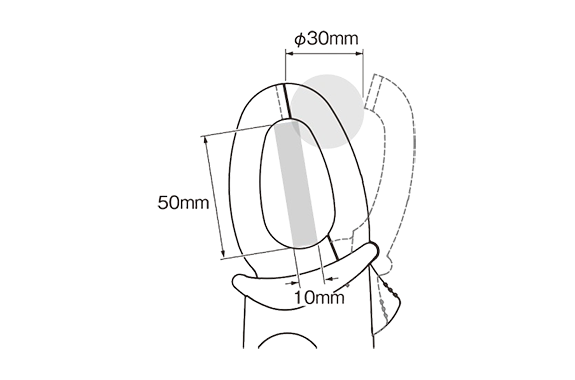

| Clamp diameter/Conductor size | Φ30mm/10×50mm |
| Battery | LR03×2 |
| Battery life | Approx. 40 hrs. (Backlight off) |
| Size/Mass | H208×W69×D38mm/Approx. 260g |
| Safety standards | IEC61010 CAT.Ⅲ600V |
In the peak hold mode, the measuring range is fixed at 600A.
